#include <stdio.h>#include <stdlib.h>#include <sys/mman.h>#include <sys/stat.h>#include <fcntl.h>#include <unistd.h>#include <errno.h>#include <stdint.h>#include "types.h"#include "log.h"

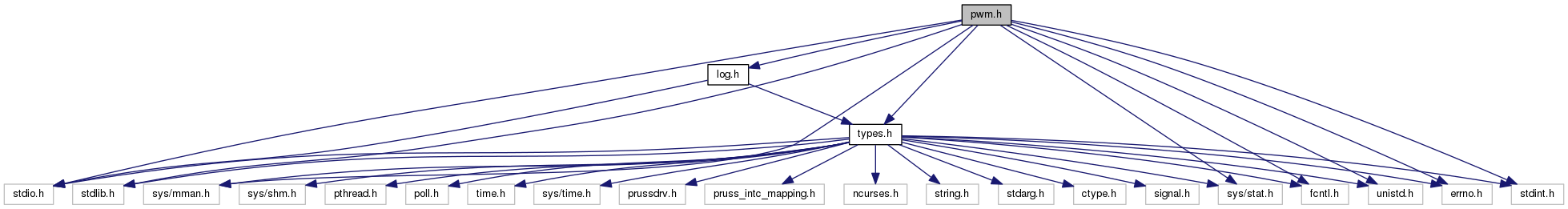

Include dependency graph for pwm.h:

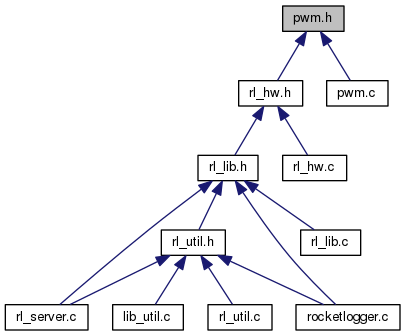

This graph shows which files directly or indirectly include this file:
Go to the source code of this file.
Macros | |
| #define | PWMSS0_BASE 0x48300000 |
| PWMSS0 register base address. More... | |
| #define | PWMSS1_BASE 0x48302000 |
| PWMSS1 register base address. More... | |
| #define | EPWM_OFFSET 0x0200 |
| EPWM module register offset. More... | |
| #define | PWM_SIZE 0x00000FFF |
| Size of PWM register memory. More... | |
| #define | TBCTL (EPWM_OFFSET+0x0) / sizeof (uint16_t) |
| Counter control register offset. More... | |
| #define | TBPRD (EPWM_OFFSET+0xA) / sizeof (uint16_t) |
| Period register offset. More... | |
| #define | CMPA (EPWM_OFFSET+0x12) / sizeof (uint16_t) |
| Compare register A offset. More... | |
| #define | CMPB (EPWM_OFFSET+0x14) / sizeof (uint16_t) |
| Compare register B offset. More... | |
| #define | AQCTLA (EPWM_OFFSET+0x16) / sizeof (uint16_t) |
| Action qualifier register offset. More... | |
| #define | AQCTLB (EPWM_OFFSET+0x18) / sizeof (uint16_t) |
| Action qualifier register B offset. More... | |
| #define | TBCTL_DEFAULT 0xC000 |
| Default counter value (see AM335x_TR) More... | |
| #define | UP_DOWN_COUNT 0x0002 |
| Up-down counting. More... | |
| #define | PRESCALE2 0x0400 |
| Counter prescale 2. More... | |
| #define | RWC_AQ_A 0x0060 |
| Action qualifier A value for latch reset (see AM335x_TR) More... | |
| #define | RWC_AQ_B 0x0900 |
| Action qualifier B value for latch reset (see AM335x_TR) More... | |
| #define | PULSE_WIDTH 0.1 |
| Latch reset pulse width (part of sampling period) More... | |
| #define | MARGIN 0.1 |
| Latch reset period margin. More... | |
| #define | PWM_PERIOD_SCALE 50000000 * (1 + PULSE_WIDTH + MARGIN) |
| Latch reset period scaling factor. More... | |
| #define | ADC_CLOCK_PERIOD 48 |
| ADC master clock period in ns. More... | |
| #define | ADC_AQ 0x0025 |
| Action qualifier value for ADC clock (see AM335x_TR) More... | |
Functions | |
| int | pwm_setup (void) |
| void | pwm_close (void) |
| void | range_clock_setup (int sample_rate) |
| void | adc_clock_setup (void) |
Macro Definition Documentation
| #define ADC_AQ 0x0025 |
Action qualifier value for ADC clock (see AM335x_TR)
Definition at line 71 of file pwm.h.
Referenced by adc_clock_setup().
| #define ADC_CLOCK_PERIOD 48 |
ADC master clock period in ns.
Definition at line 69 of file pwm.h.
Referenced by adc_clock_setup().
| #define AQCTLA (EPWM_OFFSET+0x16) / sizeof (uint16_t) |
Action qualifier register offset.
Definition at line 39 of file pwm.h.
Referenced by adc_clock_setup(), and range_clock_setup().
| #define AQCTLB (EPWM_OFFSET+0x18) / sizeof (uint16_t) |
Action qualifier register B offset.
Definition at line 41 of file pwm.h.
Referenced by range_clock_setup().
| #define CMPA (EPWM_OFFSET+0x12) / sizeof (uint16_t) |
Compare register A offset.
Definition at line 35 of file pwm.h.
Referenced by adc_clock_setup(), and range_clock_setup().
| #define CMPB (EPWM_OFFSET+0x14) / sizeof (uint16_t) |
| #define PRESCALE2 0x0400 |
| #define PULSE_WIDTH 0.1 |
Latch reset pulse width (part of sampling period)
Definition at line 60 of file pwm.h.
Referenced by range_clock_setup().
| #define PWM_PERIOD_SCALE 50000000 * (1 + PULSE_WIDTH + MARGIN) |
Latch reset period scaling factor.
Definition at line 64 of file pwm.h.
Referenced by range_clock_setup().
| #define PWM_SIZE 0x00000FFF |
Size of PWM register memory.
Definition at line 27 of file pwm.h.
Referenced by pwm_close(), and pwm_setup().
| #define PWMSS0_BASE 0x48300000 |
PWMSS0 register base address.
Copyright (c) 2016-2017, ETH Zurich, Computer Engineering Group
Definition at line 19 of file pwm.h.
Referenced by pwm_setup().
| #define PWMSS1_BASE 0x48302000 |
| #define RWC_AQ_A 0x0060 |
Action qualifier A value for latch reset (see AM335x_TR)
Definition at line 54 of file pwm.h.
Referenced by range_clock_setup().
| #define RWC_AQ_B 0x0900 |
Action qualifier B value for latch reset (see AM335x_TR)
Definition at line 56 of file pwm.h.
Referenced by range_clock_setup().
| #define TBCTL (EPWM_OFFSET+0x0) / sizeof (uint16_t) |
Counter control register offset.
Definition at line 31 of file pwm.h.
Referenced by adc_clock_setup(), and range_clock_setup().
| #define TBCTL_DEFAULT 0xC000 |
Default counter value (see AM335x_TR)
Definition at line 45 of file pwm.h.
Referenced by adc_clock_setup(), and range_clock_setup().
| #define TBPRD (EPWM_OFFSET+0xA) / sizeof (uint16_t) |
Period register offset.
Definition at line 33 of file pwm.h.
Referenced by adc_clock_setup(), and range_clock_setup().
| #define UP_DOWN_COUNT 0x0002 |
Function Documentation
| void adc_clock_setup | ( | void | ) |
Setup PWMSS0 for ADC master clock
Definition at line 84 of file pwm.c.
References ADC_AQ, ADC_CLOCK_PERIOD, AQCTLA, CMPA, pwmss0_regs, TBCTL, TBCTL_DEFAULT, and TBPRD.
Referenced by hw_init().
| void pwm_close | ( | void | ) |
Unmap PWM registers from user space
Definition at line 48 of file pwm.c.
References mem_fd, PWM_SIZE, pwmss0_regs, and pwmss1_regs.
Referenced by hw_close().
| int pwm_setup | ( | void | ) |
Map PWM registers into user space (on pwmss0_regs and pwmss1_regs pointer)
Definition at line 18 of file pwm.c.
References ERROR, FAILURE, mem_fd, PWM_SIZE, PWMSS0_BASE, pwmss0_regs, PWMSS1_BASE, pwmss1_regs, rl_log(), and SUCCESS.
Referenced by hw_init().
Here is the call graph for this function:
| void range_clock_setup | ( | int | sample_rate | ) |
Setup PWMSS1 for range latch reset clock
- Parameters
-
sample_rate ADC sampling rate in Sps
Definition at line 64 of file pwm.c.
References AQCTLA, AQCTLB, CMPA, CMPB, PRESCALE2, PULSE_WIDTH, PWM_PERIOD_SCALE, pwmss1_regs, RWC_AQ_A, RWC_AQ_B, TBCTL, TBCTL_DEFAULT, TBPRD, and UP_DOWN_COUNT.
Referenced by hw_init().
