#include <stdio.h>
#include <stdlib.h>
#include <string.h>
#include <stdint.h>
#include <unistd.h>
#include <stdarg.h>
#include <errno.h>
#include <ctype.h>
#include <signal.h>
#include <sys/shm.h>
#include <sys/mman.h>
#include <pthread.h>
#include <fcntl.h>
#include <poll.h>
#include <sys/stat.h>
#include <time.h>
#include <sys/time.h>
#include <prussdrv.h>
#include <pruss_intc_mapping.h>
#include <ncurses.h>

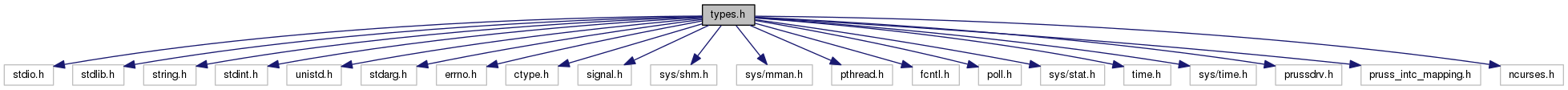

Include dependency graph for types.h:

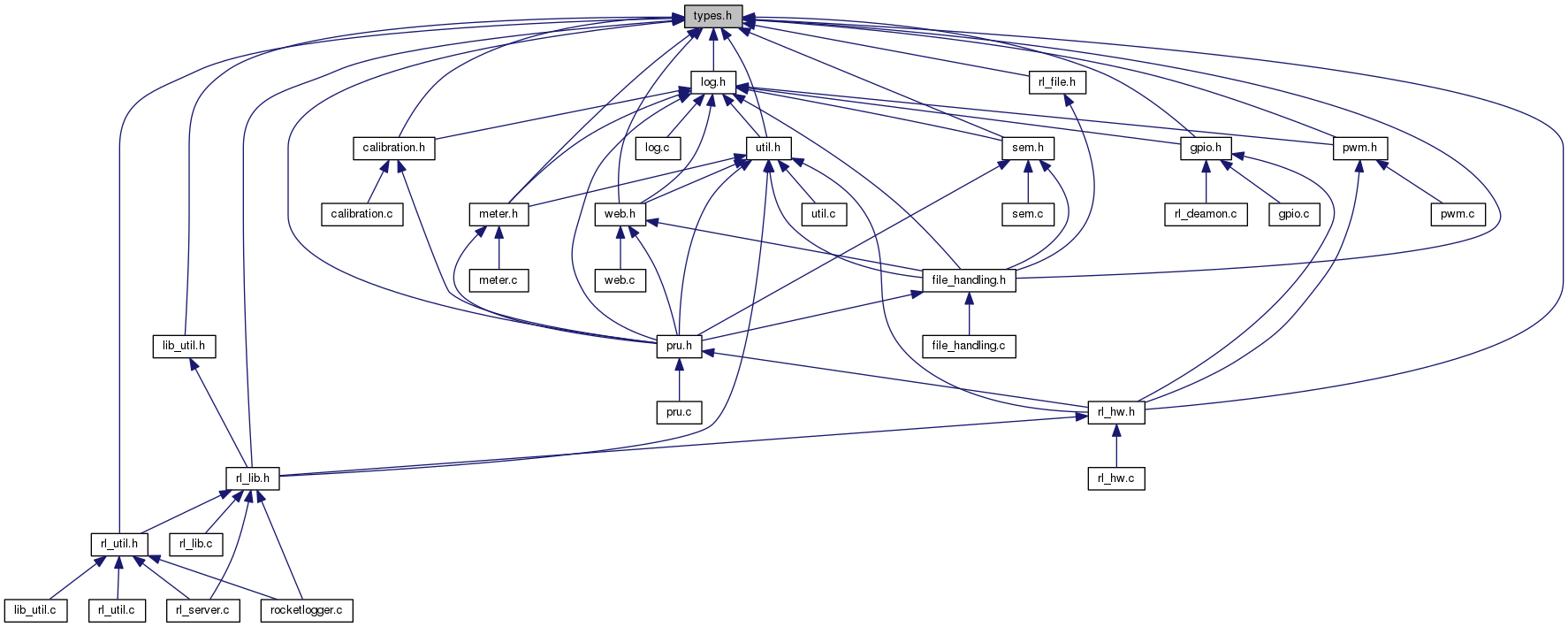

This graph shows which files directly or indirectly include this file:

Go to the source code of this file.

Data Structures
struct	rl_conf

struct	rl_status

struct	rl_calibration

Macros
#define	SUCCESS 1

#define	UNDEFINED 0

#define	TIME_OUT 0

#define	FAILURE -1

#define	PID_FILE "/var/run/rocketlogger.pid"
	Process ID file for background process. More...

#define	LOG_FILE "/var/www/log/log.txt"
	Log file name. More...

#define	MAC_ADDRESS_FILE "/sys/class/net/eth0/address"
	File to read MAC address. More...

#define	CALIBRATION_FILE "/etc/rocketlogger/calibration.dat"
	Calibration file name. More...

#define	MAX_LOG_FILE_SIZE 1000000
	Log file size in bytes. More...

#define	SHMEM_STATUS_KEY 1111
	Key for status shared memory (used for creation) More...

#define	SHMEM_DATA_KEY 4443
	Key for web shared memory (used for creation) More...

#define	MAX_PATH_LENGTH 100
	Maximum path length in characters. More...

#define	NUM_CHANNELS 8
	Maximum number of RocketLogger channels. More...

#define	NUM_I_CHANNELS 2
	Maximum number of RocketLogger current channels. More...

#define	NUM_V_CHANNELS 4
	Maximum number of RocketLogger voltage channels. More...

#define	NUM_DIGITAL_INPUTS 6
	Number of RocketLogger digital channels. More...

#define	METER_UPDATE_RATE 5
	Data update rate in METER mode. More...

#define	PRU_DIG_SIZE 2
	Size of PRU digital information in bytes. More...

#define	PRU_BUFFER_STATUS_SIZE 4
	Size of PRU buffer status in bytes. More...

#define	KSPS 1000
	KSPS <-> SPS conversion factor. More...

#define	I1L_VALID_BIT 1

#define	I2L_VALID_BIT 1

#define	DIGIN1_BIT 2

#define	DIGIN2_BIT 4

#define	DIGIN3_BIT 8

#define	DIGIN4_BIT 2

#define	DIGIN5_BIT 4

#define	DIGIN6_BIT 8

#define	MIN_ADC_RATE 1000
	Minimal ADC sampling rate. More...

#define	CHANNEL_DISABLED 0
	Channel sampling disabled. More...

#define	CHANNEL_ENABLED 1
	Channel sampling enabled. More...

#define	I1H_INDEX 0

#define	I1L_INDEX 1

#define	V1_INDEX 2

#define	V2_INDEX 3

#define	I2H_INDEX 4

#define	I2L_INDEX 5

#define	V3_INDEX 6

#define	V4_INDEX 7

#define	DIGITAL_INPUTS_DISABLED 0
	Digital input sampling disabled. More...

#define	DIGITAL_INPUTS_ENABLED 1
	Digital input sampling ensabled. More...

#define	SEM_KEY 2222
	Semaphore key (used for set creation) More...

#define	NUM_SEMS 2
	Number of semaphores in set. More...

#define	SEM_TIME_OUT 3
	Time out time in seconds, waiting on semaphore read. More...

#define	SEM_WRITE_TIME_OUT 1
	Time out time in seconds, waiting on semaphore write. More...

#define	SEM_SET_TIME_OUT 1
	Time out time in seconds, waiting on semaphore value set. More...

#define	DATA_SEM 0
	Number of data semaphore in set (manages access to shared memory data) More...

#define	WAIT_SEM 1
	Number of wait semaphore in set (blocks all server processes, until new data is available) More...

#define	NO_FLAG 0
	No flag. More...

Typedefs
typedef enum state	rl_state

typedef enum sampling	rl_sampling

typedef enum mode	rl_mode

typedef enum file_format	rl_file_format

typedef enum use_cal	rl_use_cal

typedef enum log_type	rl_log_type

Enumerations
enum	state { RL_OFF = 0, RL_RUNNING = 1, RL_ERROR = -1 }

enum	sampling { SAMPLING_OFF = 0, SAMPLING_ON = 1 }

enum	mode { LIMIT, CONTINUOUS, METER, STATUS, STOPPED, SET_DEFAULT, PRINT_DEFAULT, PRINT_VERSION, HELP, NO_MODE }

enum	file_format { NO_FILE = 0, CSV = 1, BIN = 2 }

enum	use_cal { CAL_IGNORE = 0, CAL_USE = 1 }

enum	log_type { ERROR, WARNING, INFO }

Variables
struct rl_status	status
	RocketLogger status. More...

struct rl_calibration	calibration
	Calibration data. More...

const char *	channel_names [NUM_CHANNELS]
	Channel names. More...

const char *	digital_input_names [NUM_DIGITAL_INPUTS]
	Digital input names. More...

const char *	valid_info_names [NUM_I_CHANNELS]
	Range valid information names. More...

Macro Definition Documentation

#define CALIBRATION_FILE "/etc/rocketlogger/calibration.dat"

Calibration file name.

Definition at line 63 of file types.h.

Referenced by read_calibration().

#define CHANNEL_DISABLED 0

Channel sampling disabled.

Definition at line 176 of file types.h.

Referenced by hw_init().

#define CHANNEL_ENABLED 1

Channel sampling enabled.

Definition at line 178 of file types.h.

Referenced by count_channels(), handle_data_buffer(), merge_currents(), meter_print_buffer(), parse_args(), parse_channels(), pru_sample(), reset_config(), rl_print_config(), setup_channels(), and setup_lead_in().

#define DATA_SEM 0

Number of data semaphore in set (manages access to shared memory data)

Definition at line 273 of file types.h.

Referenced by handle_data_buffer(), main(), print_data(), pru_sample(), and remove_sem().

#define DIGIN1_BIT 2

Definition at line 100 of file types.h.

#define DIGIN2_BIT 4

Definition at line 101 of file types.h.

#define DIGIN3_BIT 8

Definition at line 102 of file types.h.

#define DIGIN4_BIT 2

Definition at line 103 of file types.h.

#define DIGIN5_BIT 4

Definition at line 104 of file types.h.

#define DIGIN6_BIT 8

Definition at line 105 of file types.h.

#define DIGITAL_INPUTS_DISABLED 0

Digital input sampling disabled.

Definition at line 195 of file types.h.

Referenced by parse_args().

#define DIGITAL_INPUTS_ENABLED 1

Digital input sampling ensabled.

Definition at line 197 of file types.h.

Referenced by handle_data_buffer(), parse_args(), pru_sample(), reset_config(), setup_channels(), and setup_lead_in().

#define FAILURE -1

#define I1H_INDEX 0

Channel indices in channel array

Definition at line 184 of file types.h.

Referenced by is_current(), merge_currents(), and pru_sample().

#define I1L_INDEX 1

Definition at line 185 of file types.h.

Referenced by handle_data_buffer(), is_current(), is_low_current(), merge_currents(), pru_sample(), setup_channels(), and setup_lead_in().

#define I1L_VALID_BIT 1

Digital channel bit position in PRU digital information

Definition at line 98 of file types.h.

Referenced by meter_print_buffer().

#define I2H_INDEX 4

Definition at line 188 of file types.h.

Referenced by is_current(), merge_currents(), and pru_sample().

#define I2L_INDEX 5

Definition at line 189 of file types.h.

Referenced by handle_data_buffer(), is_current(), is_low_current(), merge_currents(), pru_sample(), setup_channels(), and setup_lead_in().

#define I2L_VALID_BIT 1

Definition at line 99 of file types.h.

Referenced by meter_print_buffer().

#define KSPS 1000

KSPS <-> SPS conversion factor.

Definition at line 93 of file types.h.

Referenced by parse_args(), and rl_print_config().

#define LOG_FILE "/var/www/log/log.txt"

Log file name.

Definition at line 59 of file types.h.

Referenced by rl_log().

#define MAC_ADDRESS_FILE "/sys/class/net/eth0/address"

File to read MAC address.

Definition at line 61 of file types.h.

Referenced by get_mac_addr().

#define MAX_LOG_FILE_SIZE 1000000

Log file size in bytes.

Definition at line 66 of file types.h.

Referenced by rl_log().

#define MAX_PATH_LENGTH 100

Maximum path length in characters.

Definition at line 76 of file types.h.

Referenced by gpio_dir(), gpio_get_value(), gpio_interrupt(), gpio_set_value(), gpio_wait_interrupt(), print_status(), and pru_sample().

#define METER_UPDATE_RATE 5

Data update rate in METER mode.

Definition at line 86 of file types.h.

Referenced by rl_start().

#define MIN_ADC_RATE 1000

Minimal ADC sampling rate.

Definition at line 108 of file types.h.

Referenced by handle_data_buffer(), hw_init(), pru_sample(), and rl_start().

#define NO_FLAG 0

No flag.

Definition at line 278 of file types.h.

Referenced by set_sem(), and wait_sem().

#define NUM_CHANNELS 8

Maximum number of RocketLogger channels.

Definition at line 78 of file types.h.

Referenced by count_channels(), handle_data_buffer(), meter_print_buffer(), parse_channels(), print_status(), pru_data_setup(), pru_sample(), read_calibration(), reset_config(), reset_offsets(), reset_scales(), rl_print_config(), and setup_channels().

#define NUM_DIGITAL_INPUTS 6

Number of RocketLogger digital channels.

Definition at line 84 of file types.h.

Referenced by handle_data_buffer(), pru_sample(), setup_channels(), and setup_lead_in().

#define NUM_I_CHANNELS 2

Maximum number of RocketLogger current channels.

Definition at line 80 of file types.h.

Referenced by handle_data_buffer(), print_status(), and rl_print_config().

#define NUM_SEMS 2

Number of semaphores in set.

Definition at line 264 of file types.h.

Referenced by create_sem(), and open_sem().

#define NUM_V_CHANNELS 4

Maximum number of RocketLogger voltage channels.

Definition at line 82 of file types.h.

#define PID_FILE "/var/run/rocketlogger.pid"

Process ID file for background process.

Definition at line 57 of file types.h.

Referenced by get_pid(), and set_pid().

#define PRU_BUFFER_STATUS_SIZE 4

Size of PRU buffer status in bytes.

Definition at line 90 of file types.h.

Referenced by pru_data_setup(), and pru_sample().

#define PRU_DIG_SIZE 2

Size of PRU digital information in bytes.

Definition at line 88 of file types.h.

Referenced by handle_data_buffer(), meter_print_buffer(), pru_data_setup(), and pru_sample().

#define SEM_KEY 2222

Semaphore key (used for set creation)

Definition at line 262 of file types.h.

Referenced by create_sem(), and open_sem().

#define SEM_SET_TIME_OUT 1

Time out time in seconds, waiting on semaphore value set.

Definition at line 270 of file types.h.

Referenced by set_sem().

#define SEM_TIME_OUT 3

Time out time in seconds, waiting on semaphore read.

Definition at line 266 of file types.h.

Referenced by main(), and print_data().

#define SEM_WRITE_TIME_OUT 1

Time out time in seconds, waiting on semaphore write.

Definition at line 268 of file types.h.

Referenced by handle_data_buffer().

#define SHMEM_DATA_KEY 4443

Key for web shared memory (used for creation)

Definition at line 71 of file types.h.

Referenced by create_web_shm(), and open_web_shm().

#define SHMEM_STATUS_KEY 1111

Key for status shared memory (used for creation)

Definition at line 69 of file types.h.

Referenced by read_status(), and write_status().

#define SUCCESS 1

Definition at line 50 of file types.h.

Referenced by check_sample_rate(), check_update_rate(), gpio_dir(), gpio_export(), gpio_interrupt(), gpio_set_value(), gpio_setup(), gpio_unexport(), hw_sample(), main(), parse_args(), parse_channels(), print_data(), pru_data_setup(), pru_init(), pru_sample(), pwm_setup(), read_calibration(), read_default_config(), read_status(), remove_sem(), rl_start(), rl_stop(), set_pid(), set_sem(), unmap_pru_memory(), wait_sem(), write_default_config(), and write_status().

#define TIME_OUT 0

Definition at line 52 of file types.h.

Referenced by handle_data_buffer(), set_sem(), and wait_sem().

#define UNDEFINED 0

Definition at line 51 of file types.h.

Referenced by read_default_config().

#define V1_INDEX 2

Definition at line 186 of file types.h.

Referenced by merge_currents().

#define V2_INDEX 3

Definition at line 187 of file types.h.

Referenced by merge_currents().

#define V3_INDEX 6

Definition at line 190 of file types.h.

Referenced by merge_currents().

#define V4_INDEX 7

Definition at line 191 of file types.h.

Referenced by merge_currents().

#define WAIT_SEM 1

Number of wait semaphore in set (blocks all server processes, until new data is available)

Definition at line 275 of file types.h.

Referenced by main(), and pru_sample().

Typedef Documentation

typedef enum file_format rl_file_format

RocketLogger file format definition

typedef enum log_type rl_log_type

RocketLogger log file types definition

typedef enum mode rl_mode

RocketLogger mode definition

typedef enum sampling rl_sampling

RocketLogger sampling state definition

typedef enum state rl_state

RocketLogger state definition

typedef enum use_cal rl_use_cal

RocketLogger calibration definition

Enumeration Type Documentation

enum file_format

RocketLogger file format definition

Enumerator
NO_FILE	No file.
CSV	CSV format.
BIN	Binary format.

Definition at line 149 of file types.h.

enum log_type

RocketLogger log file types definition

Enumerator
ERROR	Error.
WARNING	Warning.
INFO	Information.

Definition at line 166 of file types.h.

enum mode

RocketLogger mode definition

Enumerator
LIMIT	Limited sampling mode (limited by number of samples to take)
CONTINUOUS	Continuous sampling mode (in background)
METER	Meter mode (display current values in terminal)
STATUS	Get current status of RocketLogger.
STOPPED	Stop continuous sampling.
SET_DEFAULT	Set default configuration.
PRINT_DEFAULT	Print default configuration.
PRINT_VERSION	Print the RocketLogger Software Stack version.
HELP	Show help.
NO_MODE	No mode.
