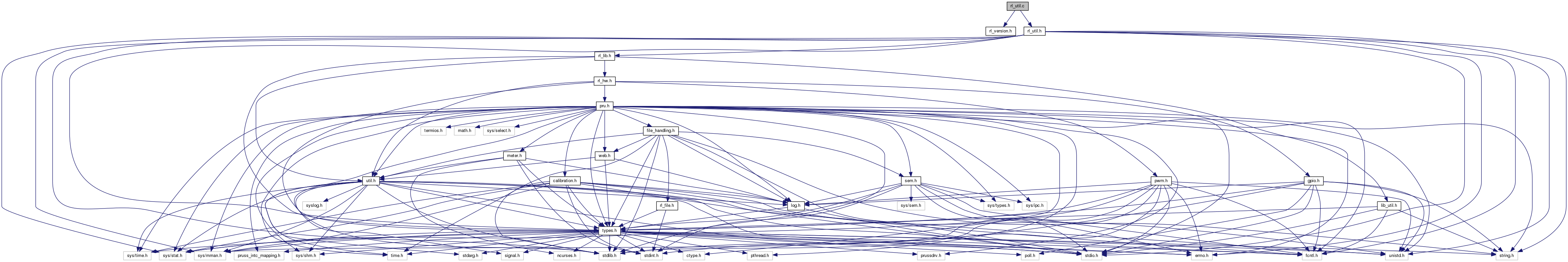

Include dependency graph for rl_util.c:
Go to the source code of this file.
Functions | |
| void | rl_print_config (struct rl_conf *conf) |
| void | rl_print_status (struct rl_status *status) |
| void | rl_print_version (void) |
| char * | rl_get_version (void) |
| rl_mode | get_mode (char *mode) |
| rl_option | get_option (char *option) |
| int | parse_channels (int channels[], char *value) |
| int | parse_args (int argc, char *argv[], struct rl_conf *conf, int *set_as_default) |
| void | print_usage (void) |
| void | print_config (struct rl_conf *conf) |
| void | reset_config (struct rl_conf *conf) |
| int | read_default_config (struct rl_conf *conf) |
| int | write_default_config (struct rl_conf *conf) |
Function Documentation
| rl_mode get_mode | ( | char * | mode | ) |
Get RocketLogger mode of provided command line argument
- Parameters
-
mode Pointer to argument string to parse
- Returns
- provided mode
Definition at line 93 of file rl_util.c.
References CONTINUOUS, HELP, LIMIT, METER, NO_MODE, PRINT_DEFAULT, PRINT_VERSION, SET_DEFAULT, STATUS, and STOPPED.
Referenced by parse_args().
| rl_option get_option | ( | char * | option | ) |
Get RocketLogger option of provided command line argument
- Parameters
-
option Pointer to argument string to parse
- Returns
- provided option
Definition at line 122 of file rl_util.c.
References CALIBRATION, CHANNEL, DEF_CONF, DIGITAL_INPUTS, FHR, FILE_FORMAT, FILE_NAME, FILE_SIZE, NO_OPTION, SAMPLE_RATE, UPDATE_RATE, and WEB.
Referenced by parse_args().
| int parse_args | ( | int | argc, |
| char * | argv[], | ||
| struct rl_conf * | conf, | ||
| int * | set_as_default | ||
| ) |
Parse input arguments of RocketLogger CLI
- Parameters
-
argc Number of input arguments argv Input argument string conf Pointer to rl_conf configuration to write set_as_default Is set to 1, if configuration should be set as default
Definition at line 201 of file rl_util.c.
References BIN, CAL_IGNORE, CAL_USE, CALIBRATION, rl_conf::calibration, CHANNEL, CHANNEL_ENABLED, rl_conf::channels, check_sample_rate(), check_update_rate(), CSV, DEF_CONF, DIGITAL_INPUTS, rl_conf::digital_inputs, DIGITAL_INPUTS_DISABLED, DIGITAL_INPUTS_ENABLED, rl_conf::enable_web_server, ERROR, FAILURE, FHR, FILE_FORMAT, rl_conf::file_format, FILE_NAME, rl_conf::file_name, FILE_SIZE, rl_conf::force_high_channels, get_mode(), get_option(), HELP, INFO, KSPS, LIMIT, rl_conf::max_file_size, rl_conf::mode, NO_FILE, NO_MODE, NO_OPTION, parse_channels(), PRINT_DEFAULT, reset_config(), rl_log(), rl_conf::sample_limit, SAMPLE_RATE, rl_conf::sample_rate, SET_DEFAULT, STATUS, STOPPED, SUCCESS, UPDATE_RATE, rl_conf::update_rate, and WEB.
Referenced by main().
Here is the call graph for this function:
| int parse_channels | ( | int | channels[], |
| char * | value | ||
| ) |
Parse command line argument to selected channels
- Parameters
-
channels Channel array to write value Pointer to argument string to parse
Definition at line 156 of file rl_util.c.
References CHANNEL_ENABLED, ERROR, FAILURE, NUM_CHANNELS, rl_log(), and SUCCESS.
Referenced by parse_args().
Here is the call graph for this function:
| void print_config | ( | struct rl_conf * | conf | ) |
Print provided configuration to command line
- Parameters
-
conf Pointer to rl_conf configuration
Definition at line 499 of file rl_util.c.
References rl_print_config().
Referenced by main().
Here is the call graph for this function:
| void print_usage | ( | void | ) |
| int read_default_config | ( | struct rl_conf * | conf | ) |
Read default configuration from file
- Parameters
-
conf Pointer to rl_conf configuration
Definition at line 536 of file rl_util.c.
References CONTINUOUS, DEFAULT_CONFIG, ERROR, FAILURE, rl_conf::mode, reset_config(), rl_log(), SUCCESS, and UNDEFINED.
Referenced by main(), and print_status().
Here is the call graph for this function:
| void reset_config | ( | struct rl_conf * | conf | ) |
Reset configuration to standard values
- Parameters
-
conf Pointer to rl_conf configuration
Definition at line 510 of file rl_util.c.
References BIN, CAL_USE, rl_conf::calibration, CHANNEL_ENABLED, rl_conf::channels, CONTINUOUS, rl_conf::digital_inputs, DIGITAL_INPUTS_ENABLED, rl_conf::enable_web_server, rl_conf::file_format, rl_conf::file_name, rl_conf::force_high_channels, rl_conf::max_file_size, rl_conf::mode, NUM_CHANNELS, rl_conf::sample_limit, rl_conf::sample_rate, and rl_conf::update_rate.
Referenced by parse_args(), and read_default_config().
| char* rl_get_version | ( | void | ) |
Get the the RocketLogger software version number string.
- Returns
- The RocketLogger Sofware Stack's version number string.
Definition at line 83 of file rl_util.c.
References RL_VERSION.
| void rl_print_config | ( | struct rl_conf * | conf | ) |
Copyright (c) 2016-2017, ETH Zurich, Computer Engineering Group Print RocketLogger configuration on command line
- Parameters
-
conf Pointer to rl_conf configuration
Definition at line 13 of file rl_util.c.
References CAL_IGNORE, rl_conf::calibration, CHANNEL_ENABLED, rl_conf::channels, rl_conf::digital_inputs, rl_conf::enable_web_server, rl_conf::file_format, rl_conf::file_name, rl_conf::force_high_channels, KSPS, rl_conf::max_file_size, NO_FILE, NUM_CHANNELS, NUM_I_CHANNELS, rl_conf::sample_limit, rl_conf::sample_rate, and rl_conf::update_rate.
Referenced by print_config(), and rl_print_status().
| void rl_print_status | ( | struct rl_status * | status | ) |
Print RocketLogger status on command line
- Parameters
-
status Pointer to rl_status status
Definition at line 53 of file rl_util.c.
References rl_status::calibration_time, rl_status::conf, RL_OFF, rl_print_config(), rl_status::samples_taken, rl_status::state, and rl_calibration::time.
Referenced by main().
Here is the call graph for this function:
| void rl_print_version | ( | void | ) |
Print the RocketLogger software version on the command line.
Definition at line 74 of file rl_util.c.
References RL_VERSION.
Referenced by main().
| int write_default_config | ( | struct rl_conf * | conf | ) |
