#include "file_handling.h"

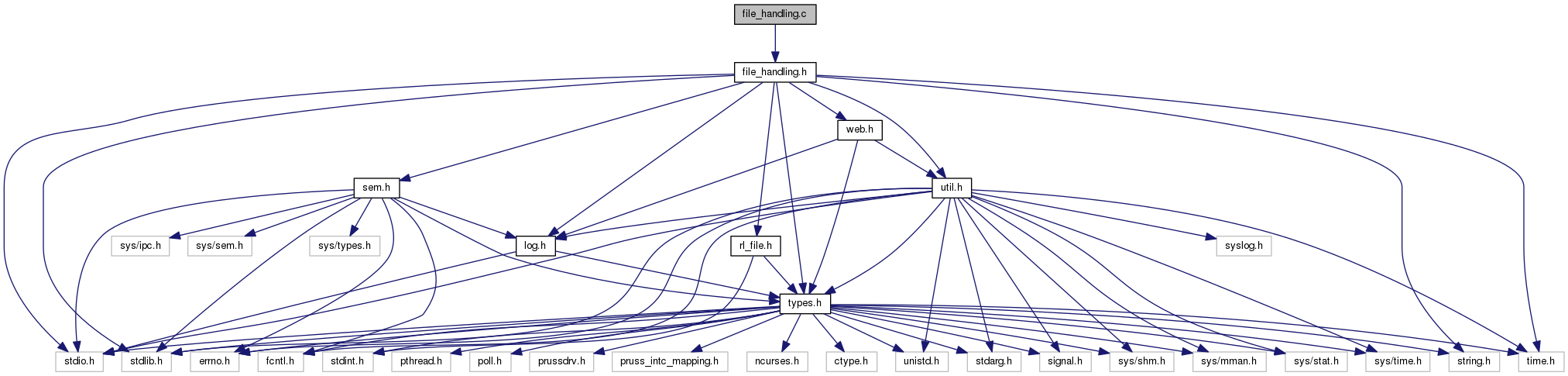

Include dependency graph for file_handling.c:

Functions
void	create_time_stamp (struct time_stamp time_real, struct time_stamp time_monotonic)

void	get_mac_addr (uint8_t mac_address[MAC_ADDRESS_LENGTH])

void	setup_lead_in (struct rl_file_lead_in lead_in, struct rl_conf conf)

void	setup_channels (struct rl_file_header file_header, struct rl_conf conf)

void	setup_header (struct rl_file_header file_header, struct rl_conf conf)

void	store_header_bin (FILE data, struct rl_file_header file_header)

void	store_header_csv (FILE data, struct rl_file_header file_header)

void	update_header_bin (FILE data, struct rl_file_header file_header)

void	update_header_csv (FILE data, struct rl_file_header file_header)

void	merge_currents (uint8_t valid, int64_t dest, int64_t src, struct rl_conf conf)

void	handle_data_buffer (FILE data, void buffer_addr, uint32_t sample_size, uint32_t samples_buffer, struct rl_conf conf, int sem_id, struct web_shm web_data_ptr)

Variables
const char *	channel_names [NUM_CHANNELS] = {"I1H","I1L","V1","V2","I2H","I2L","V3","V4"}
	Channel names. More...

const char *	digital_input_names [NUM_DIGITAL_INPUTS] = {"DI1", "DI2", "DI3", "DI4", "DI5", "DI6"}
	Digital input names. More...

const char *	valid_info_names [NUM_I_CHANNELS] = {"I1L_valid", "I2L_valid"}
	Valid channel names. More...

int	i1l_valid_channel = 0
	Global variable to determine i1l valid channel. More...

int	i2l_valid_channel = 0
	Global variable to determine i2l valid channel. More...

Function Documentation

void create_time_stamp	(	struct time_stamp *	time_real,
		struct time_stamp *	time_monotonic
	)

Create time stamps (real and monotonic)

Parameters

time_real	Pointer to time_stamp struct
time_monotonic	Pointer to time_stamp struct

Definition at line 24 of file file_handling.c.

References ERROR, time_stamp::nsec, rl_log(), and time_stamp::sec.

Referenced by handle_data_buffer(), and setup_lead_in().

Here is the call graph for this function:

void get_mac_addr ( uint8_t mac_address[MAC_ADDRESS_LENGTH] )

Get MAC address of device

Parameters

mac_address Empty array with size MAC_ADDRESS_LENGTH

Definition at line 50 of file file_handling.c.

References MAC_ADDRESS_FILE, and MAC_ADDRESS_LENGTH.

Referenced by setup_lead_in().

void handle_data_buffer	(	FILE *	data,
		void *	buffer_addr,
		uint32_t	sample_size,
		uint32_t	samples_buffer,
		struct rl_conf *	conf,
		int	sem_id,
		struct web_shm *	web_data_ptr
	)

Handle a data buffer, dependent on current configuration

Parameters

data	File pointer to data file
buffer_addr	Pointer to buffer to handle
sample_size	Size of samples to read
samples_buffer	Number of samples to read
conf	Current rl_conf configuration.
sem_id	ID of semaphores for shared web data
web_data_ptr	Pointer to shared web data

Definition at line 383 of file file_handling.c.

References BIN, BINARY_MASK, BUF100_INDEX, BUF10_INDEX, BUF1_INDEX, web_shm::buffer, BUFFER100_SIZE, BUFFER10_SIZE, BUFFER1_SIZE, buffer_add(), calibration, CHANNEL_ENABLED, rl_conf::channels, count_channels(), create_time_stamp(), CSV, CSV_LINE_LENGTH, CSV_VALUE_LENGTH, DATA_SEM, rl_conf::digital_inputs, DIGITAL_INPUTS_ENABLED, rl_conf::enable_web_server, rl_conf::file_format, I1L_INDEX, I2L_INDEX, merge_currents(), MIN_ADC_RATE, time_stamp::nsec, num_channels, web_shm::num_channels, NUM_CHANNELS, NUM_DIGITAL_INPUTS, NUM_I_CHANNELS, rl_calibration::offsets, PRU_DIG_SIZE, rl_log(), RL_RUNNING, rl_conf::sample_rate, rl_calibration::scales, time_stamp::sec, SEM_WRITE_TIME_OUT, set_sem(), rl_status::state, status, web_shm::time, TIME_OUT, rl_conf::update_rate, VALID_MASK, wait_sem(), WARNING, web_data, and WEB_RING_BUFFER_COUNT.

Referenced by pru_sample().

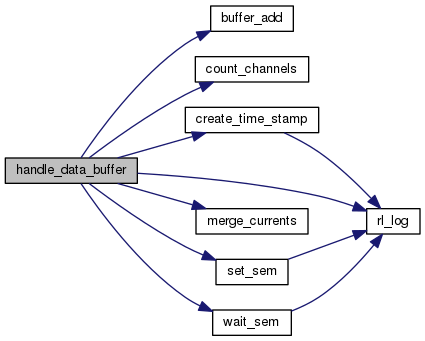

Here is the call graph for this function:

void merge_currents	(	uint8_t *	valid,
		int64_t *	dest,
		int64_t *	src,
		struct rl_conf *	conf
	)

Merge high/low currents for web interface

Parameters

valid	Valid information of low range current channels
dest	Pointer to destination array
src	Pointer to source array
conf	Pointer to current rl_conf configuration

Definition at line 327 of file file_handling.c.

References CHANNEL_ENABLED, rl_conf::channels, H_L_SCALE, I1H_INDEX, I1L_INDEX, I2H_INDEX, I2L_INDEX, V1_INDEX, V2_INDEX, V3_INDEX, and V4_INDEX.

Referenced by handle_data_buffer().

void setup_channels	(	struct rl_file_header *	file_header,
		struct rl_conf *	conf
	)

Set up channel information for file header with current configuration

Parameters

file_header	Pointer to rl_file_header struct to set up
conf	Pointer to current rl_conf struct

Definition at line 111 of file file_handling.c.

References rl_file_header::channel, rl_file_lead_in::channel_bin_count, rl_file_lead_in::channel_count, CHANNEL_ENABLED, channel_names, rl_file_channel::channel_scale, rl_conf::channels, rl_file_channel::data_size, digital_input_names, rl_conf::digital_inputs, DIGITAL_INPUTS_ENABLED, I1L_INDEX, i1l_valid_channel, I2L_INDEX, i2l_valid_channel, is_current(), is_low_current(), rl_file_header::lead_in, rl_file_channel::name, NO_VALID_DATA, NUM_CHANNELS, NUM_DIGITAL_INPUTS, RL_SCALE_NANO, RL_SCALE_NONE, RL_SCALE_TEN_NANO, RL_SCALE_TEN_PICO, RL_UNIT_AMPERE, RL_UNIT_BINARY, RL_UNIT_RANGE_VALID, RL_UNIT_VOLT, rl_file_channel::unit, rl_file_channel::valid_data_channel, and valid_info_names.

Referenced by setup_header().

Here is the call graph for this function:

void setup_header	(	struct rl_file_header *	file_header,
		struct rl_conf *	conf
	)

Set up file header with current configuration

Parameters

file_header	Pointer to rl_file_header to set up
conf	Pointer to current rl_conf struct

Definition at line 188 of file file_handling.c.

References rl_file_header::comment, RL_FILE_COMMENT, and setup_channels().

Referenced by pru_sample().

Here is the call graph for this function:

void setup_lead_in	(	struct rl_file_lead_in *	lead_in,
		struct rl_conf *	conf
	)

Set up file header lead-in with current configuration

Parameters

lead_in	Pointer to rl_file_lead_in struct to set up
conf	Pointer to current rl_conf struct

Definition at line 67 of file file_handling.c.

References rl_file_lead_in::channel_bin_count, rl_file_lead_in::channel_count, CHANNEL_ENABLED, rl_conf::channels, rl_file_lead_in::comment_length, count_channels(), create_time_stamp(), rl_file_lead_in::data_block_count, rl_file_lead_in::data_block_size, rl_conf::digital_inputs, DIGITAL_INPUTS_ENABLED, rl_file_lead_in::file_version, get_mac_addr(), rl_file_lead_in::header_length, I1L_INDEX, i1l_valid_channel, I2L_INDEX, i2l_valid_channel, rl_file_lead_in::mac_address, rl_file_lead_in::magic, NUM_DIGITAL_INPUTS, RL_FILE_COMMENT, RL_FILE_MAGIC, RL_FILE_VERSION, rl_file_lead_in::sample_count, rl_file_lead_in::sample_rate, rl_conf::sample_rate, rl_file_lead_in::start_time, and rl_conf::update_rate.

Referenced by pru_sample().

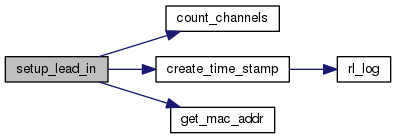

Here is the call graph for this function:

void store_header_bin	(	FILE *	data,
		struct rl_file_header *	file_header
	)

Store file header to file (in binary format)

Parameters

data	File pointer to data file
file_header	Pointer to rl_file_header struct

Definition at line 204 of file file_handling.c.

References rl_file_header::channel, rl_file_lead_in::channel_bin_count, rl_file_lead_in::channel_count, rl_file_header::comment, rl_file_lead_in::comment_length, rl_file_lead_in::header_length, rl_file_header::lead_in, and RL_FILE_COMMENT_ALIGNMENT_BYTES.

Referenced by pru_sample().

void store_header_csv	(	FILE *	data,
		struct rl_file_header *	file_header
	)

Store file header to file (in CSV format)

Parameters

data	File pointer to data file
file_header	Pointer to rl_file_header struct

Definition at line 237 of file file_handling.c.

References rl_file_header::channel, rl_file_lead_in::channel_bin_count, rl_file_lead_in::channel_count, rl_file_channel::channel_scale, rl_file_header::comment, rl_file_lead_in::data_block_count, rl_file_lead_in::data_block_size, rl_file_lead_in::file_version, rl_file_header::lead_in, rl_file_lead_in::mac_address, MAC_ADDRESS_LENGTH, rl_file_channel::name, RL_SCALE_MICRO, RL_SCALE_MILLI, RL_SCALE_NANO, RL_SCALE_TEN_NANO, RL_SCALE_TEN_PICO, RL_UNIT_AMPERE, RL_UNIT_VOLT, rl_file_lead_in::sample_count, rl_file_lead_in::sample_rate, time_stamp::sec, rl_file_lead_in::start_time, and rl_file_channel::unit.

Referenced by pru_sample().

void update_header_bin	(	FILE *	data,
		struct rl_file_header *	file_header
	)

Update file with new header lead-in (to write current sample count) in binary format

Parameters

data	File pointer to data file
file_header	Pointer to rl_file_header struct

Definition at line 297 of file file_handling.c.

References rl_file_header::lead_in.

Referenced by pru_sample().

void update_header_csv	(	FILE *	data,
		struct rl_file_header *	file_header
	)

Update file with new header lead-in (to write current sample count) in CSV format

Parameters

data	File pointer to data file
file_header	Pointer to rl_file_header struct

Definition at line 310 of file file_handling.c.

References rl_file_lead_in::data_block_count, rl_file_lead_in::data_block_size, rl_file_lead_in::file_version, rl_file_header::lead_in, and rl_file_lead_in::sample_count.

Referenced by pru_sample().

Variable Documentation

const char* channel_names[NUM_CHANNELS] = {"I1H","I1L","V1","V2","I2H","I2L","V3","V4"}

Channel names.

Definition at line 8 of file file_handling.c.

Referenced by meter_print_buffer(), and setup_channels().

const char* digital_input_names[NUM_DIGITAL_INPUTS] = {"DI1", "DI2", "DI3", "DI4", "DI5", "DI6"}

Digital input names.

Definition at line 10 of file file_handling.c.

Referenced by meter_print_buffer(), and setup_channels().

int i1l_valid_channel = 0

Global variable to determine i1l valid channel.

Definition at line 15 of file file_handling.c.

Referenced by setup_channels(), and setup_lead_in().

int i2l_valid_channel = 0

Global variable to determine i2l valid channel.

Definition at line 17 of file file_handling.c.

Referenced by setup_channels(), and setup_lead_in().

const char* valid_info_names[NUM_I_CHANNELS] = {"I1L_valid", "I2L_valid"}

Valid channel names.

Range valid information names.

Definition at line 12 of file file_handling.c.

Referenced by setup_channels().
