#include <stdint.h>
#include <stdio.h>
#include "pru.h"
#include "rl.h"
#include "util.h"

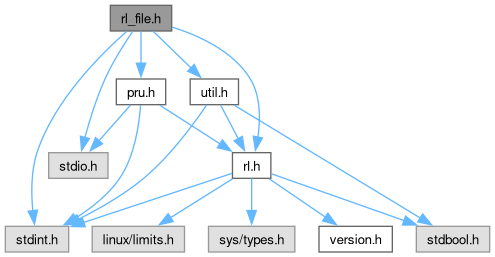

Include dependency graph for rl_file.h:

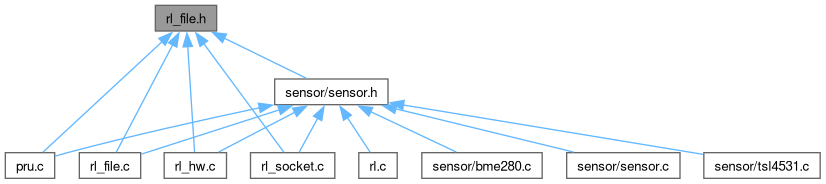

This graph shows which files directly or indirectly include this file:

Data Structures
struct	rl_file_lead_in

struct	rl_file_channel

struct	rl_file_header

Macros
#define	RL_FILE_MAGIC 0x444C5225
	File header magic number (ascii RLD)

#define	RL_FILE_VERSION 0x04
	File format version of current implementation.

#define	RL_FILE_CHANNEL_NAME_LENGTH 16
	Maximum channel description length.

#define	RL_FILE_CHANNEL_NO_LINK (UINT16_MAX)
	No additional range valid information available.

#define	RL_FILE_COMMENT_ALIGNMENT_BYTES sizeof(uint32_t)
	Comment alignment in bytes.

#define	RL_FILE_CSV_DELIMITER ","
	CSV value delimiter character.

#define	RL_FILE_AMBIENT_SUFFIX "-ambient"
	Ambient sensor data file name suffix.

#define	RL_FILE_AMBIENT_DATA_BLOCK_SIZE 1
	Ambient sensor data file block size in measurements.

#define	RL_SCALE_PICO -12

#define	RL_SCALE_TEN_PICO -11

#define	RL_SCALE_NANO -9

#define	RL_SCALE_TEN_NANO -8

#define	RL_SCALE_MICRO -6

#define	RL_SCALE_MILLI -3

#define	RL_SCALE_UNIT 0

#define	RL_SCALE_KILO 3

#define	RL_SCALE_MEGA 6

#define	RL_SCALE_GIGA 9

#define	RL_SCALE_TERA 12

Typedefs
typedef enum rl_unit	rl_unit_t

typedef struct rl_file_lead_in	rl_file_lead_in_t

typedef struct rl_file_channel	rl_file_channel_t

typedef struct rl_file_header	rl_file_header_t

Enumerations
enum	rl_unit { RL_UNIT_UNITLESS = 0 , RL_UNIT_VOLT = 1 , RL_UNIT_AMPERE = 2 , RL_UNIT_BINARY = 3 , RL_UNIT_RANGE_VALID = 4 , RL_UNIT_LUX = 5 , RL_UNIT_DEG_C = 6 , RL_UNIT_INTEGER = 7 , RL_UNIT_PERCENT = 8 , RL_UNIT_PASCAL = 9 , RL_UNIT_SECOND = 10 , RL_UNIT_UNDEFINED = (int)0xffffffff }

Functions
char *	rl_unit_to_string (rl_unit_t unit)

char *	rl_file_get_ambient_file_name (char const *const data_file_name)

void	rl_file_setup_data_lead_in (rl_file_lead_in_t const lead_in, rl_config_t const const config)

void	rl_file_setup_ambient_lead_in (rl_file_lead_in_t const lead_in, rl_config_t const const config)

void	rl_file_setup_data_header (rl_file_header_t const file_header, rl_config_t const const config)

void	rl_file_setup_ambient_header (rl_file_header_t const file_header, rl_config_t const const config)

void	rl_file_store_header_bin (FILE file_handle, rl_file_header_t const file_header)

void	rl_file_store_header_csv (FILE file_handle, rl_file_header_t const const file_header)

void	rl_file_update_header_bin (FILE file_handle, rl_file_header_t const const file_header)

void	rl_file_update_header_csv (FILE file_handle, rl_file_header_t const const file_header)

int	rl_file_add_data_block (FILE data_file, int32_t const analog_buffer, uint32_t const digital_buffer, size_t buffer_size, rl_timestamp_t const const timestamp_realtime, rl_timestamp_t const const timestamp_monotonic, rl_config_t const const config)

int	rl_file_add_ambient_block (FILE ambient_file, int32_t const ambient_buffer, size_t buffer_size, rl_timestamp_t const const timestamp_realtime, rl_timestamp_t const const timestamp_monotonic, rl_config_t const *const config)

Macro Definition Documentation

◆ RL_FILE_AMBIENT_DATA_BLOCK_SIZE

#define RL_FILE_AMBIENT_DATA_BLOCK_SIZE 1

Ambient sensor data file block size in measurements.

Definition at line 64 of file rl_file.h.

Referenced by pru_sample(), and rl_file_setup_ambient_lead_in().

◆ RL_FILE_AMBIENT_SUFFIX

#define RL_FILE_AMBIENT_SUFFIX "-ambient"

Ambient sensor data file name suffix.

Definition at line 61 of file rl_file.h.

Referenced by rl_file_get_ambient_file_name().

◆ RL_FILE_CHANNEL_NAME_LENGTH

#define RL_FILE_CHANNEL_NAME_LENGTH 16

Maximum channel description length.

Definition at line 49 of file rl_file.h.

Referenced by rl_file_setup_data_channels().

◆ RL_FILE_CHANNEL_NO_LINK

#define RL_FILE_CHANNEL_NO_LINK (UINT16_MAX)

No additional range valid information available.

Definition at line 52 of file rl_file.h.

Referenced by rl_file_setup_ambient_channels(), and rl_file_setup_data_channels().

◆ RL_FILE_COMMENT_ALIGNMENT_BYTES

#define RL_FILE_COMMENT_ALIGNMENT_BYTES sizeof(uint32_t)

Comment alignment in bytes.

Definition at line 55 of file rl_file.h.

Referenced by rl_file_setup_ambient_lead_in(), rl_file_setup_data_lead_in(), and rl_file_store_header_bin().

◆ RL_FILE_CSV_DELIMITER

#define RL_FILE_CSV_DELIMITER ","

CSV value delimiter character.

Definition at line 58 of file rl_file.h.

Referenced by rl_file_add_data_block().

◆ RL_FILE_MAGIC

#define RL_FILE_MAGIC 0x444C5225

File header magic number (ascii RLD)

Redistribution and use in source and binary forms, with or without modification, are permitted provided that the following conditions are met:

Redistributions of source code must retain the above copyright notice, this list of conditions and the following disclaimer.
Redistributions in binary form must reproduce the above copyright notice, this list of conditions and the following disclaimer in the documentation and/or other materials provided with the distribution.
Neither the name of the copyright holder nor the names of its contributors may be used to endorse or promote products derived from this software without specific prior written permission.

THIS SOFTWARE IS PROVIDED BY THE COPYRIGHT HOLDERS AND CONTRIBUTORS "AS IS" AND ANY EXPRESS OR IMPLIED WARRANTIES, INCLUDING, BUT NOT LIMITED TO, THE IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE ARE DISCLAIMED. IN NO EVENT SHALL THE COPYRIGHT HOLDER OR CONTRIBUTORS BE LIABLE FOR ANY DIRECT, INDIRECT, INCIDENTAL, SPECIAL, EXEMPLARY, OR CONSEQUENTIAL DAMAGES (INCLUDING, BUT NOT LIMITED TO, PROCUREMENT OF SUBSTITUTE GOODS OR SERVICES; LOSS OF USE, DATA, OR PROFITS; OR BUSINESS INTERRUPTION) HOWEVER CAUSED AND ON ANY THEORY OF LIABILITY, WHETHER IN CONTRACT, STRICT LIABILITY, OR TORT (INCLUDING NEGLIGENCE OR OTHERWISE) ARISING IN ANY WAY OUT OF THE USE OF THIS SOFTWARE, EVEN IF ADVISED OF THE POSSIBILITY OF SUCH DAMAGE.

Definition at line 43 of file rl_file.h.

Referenced by rl_file_setup_ambient_lead_in(), and rl_file_setup_data_lead_in().

◆ RL_FILE_VERSION

#define RL_FILE_VERSION 0x04

File format version of current implementation.

Definition at line 46 of file rl_file.h.

Referenced by rl_file_setup_ambient_lead_in(), and rl_file_setup_data_lead_in().

◆ RL_SCALE_GIGA

#define RL_SCALE_GIGA 9

Definition at line 78 of file rl_file.h.

◆ RL_SCALE_KILO

#define RL_SCALE_KILO 3

Definition at line 76 of file rl_file.h.

◆ RL_SCALE_MEGA

#define RL_SCALE_MEGA 6

Definition at line 77 of file rl_file.h.

◆ RL_SCALE_MICRO

#define RL_SCALE_MICRO -6

Definition at line 73 of file rl_file.h.

Referenced by rl_file_store_header_csv().

◆ RL_SCALE_MILLI

#define RL_SCALE_MILLI -3

Definition at line 74 of file rl_file.h.

Referenced by rl_file_store_header_csv().

◆ RL_SCALE_NANO

#define RL_SCALE_NANO -9

Definition at line 71 of file rl_file.h.

Referenced by rl_file_setup_data_channels(), and rl_file_store_header_csv().

◆ RL_SCALE_PICO

#define RL_SCALE_PICO -12

Channel scaling definitions

Definition at line 69 of file rl_file.h.

◆ RL_SCALE_TEN_NANO

#define RL_SCALE_TEN_NANO -8

Definition at line 72 of file rl_file.h.

Referenced by rl_file_setup_data_channels(), and rl_file_store_header_csv().

◆ RL_SCALE_TEN_PICO

#define RL_SCALE_TEN_PICO -11

Definition at line 70 of file rl_file.h.

Referenced by rl_file_setup_data_channels(), and rl_file_store_header_csv().

◆ RL_SCALE_TERA

#define RL_SCALE_TERA 12

Definition at line 79 of file rl_file.h.

◆ RL_SCALE_UNIT

#define RL_SCALE_UNIT 0

Definition at line 75 of file rl_file.h.

Referenced by rl_file_setup_data_channels().

Typedef Documentation

◆ rl_file_channel_t

typedef struct rl_file_channel rl_file_channel_t

Typedef for RocketLogger file header channel description.

Definition at line 158 of file rl_file.h.

◆ rl_file_header_t

typedef struct rl_file_header rl_file_header_t

Typedef for RocketLogger file header.

Definition at line 175 of file rl_file.h.

◆ rl_file_lead_in_t

typedef struct rl_file_lead_in rl_file_lead_in_t

Typedef for RocketLogger file head lead in

Definition at line 137 of file rl_file.h.

◆ rl_unit_t

typedef enum rl_unit rl_unit_t

Type definition for RocketLogger data unit.

Definition at line 102 of file rl_file.h.

Enumeration Type Documentation

◆ rl_unit

enum rl_unit

Data unit definition

Enumerator
RL_UNIT_UNITLESS	Unitless.
RL_UNIT_VOLT	Voltage (electric)
RL_UNIT_AMPERE	Current (electric)
RL_UNIT_BINARY	Binary signal.
RL_UNIT_RANGE_VALID	Range valid information.
RL_UNIT_LUX	Lux (illuminance)
RL_UNIT_DEG_C	Degree celsius (temperature)
RL_UNIT_INTEGER	Integer channel (numeric)
RL_UNIT_PERCENT	Percent (numeric, humidity)
RL_UNIT_PASCAL	Pascal (pressure)
RL_UNIT_SECOND	Second (time delta)
RL_UNIT_UNDEFINED	Undefined unit.

Definition at line 84 of file rl_file.h.

Function Documentation

◆ rl_file_add_ambient_block()

int rl_file_add_ambient_block	(	FILE *	ambient_file,
		int32_t const *	ambient_buffer,
		size_t	buffer_size,
		rl_timestamp_t const *const	timestamp_realtime,
		rl_timestamp_t const *const	timestamp_monotonic,
		rl_config_t const *const	config )

Handle the sensor data buffer to add a new block to the ambient file.

Parameters

ambient_file	Ambient file to write to
ambient_buffer	Ambient sensor data buffer to process
buffer_size	Number of sensor samples in the buffer
timestamp_realtime	Timestamp sampled from realtime clock
timestamp_monotonic	Timestamp sampled from monotonic clock
config	Current measurement configuration

Returns: Returns the number of data blocks written to the file, negative on failure with errno set accordingly

Definition at line 520 of file rl_file.c.

Referenced by pru_sample().

◆ rl_file_add_data_block()

int rl_file_add_data_block	(	FILE *	data_file,
		int32_t const *	analog_buffer,
		uint32_t const *	digital_buffer,
		size_t	buffer_size,
		rl_timestamp_t const *const	timestamp_realtime,
		rl_timestamp_t const *const	timestamp_monotonic,
		rl_config_t const *const	config )

Handle the sampling data buffer to add a new block to the data file.

Parameters

data_file	Data file to write to
analog_buffer	Analog data buffer to process
digital_buffer	Digital data buffer to process
buffer_size	Number of data samples in the buffer
timestamp_realtime	Timestamp sampled from realtime clock
timestamp_monotonic	Timestamp sampled from monotonic clock
config	Current measurement configuration

Returns: Returns the number of data blocks written to the file, negative on failure with errno set accordingly

Definition at line 350 of file rl_file.c.

References rl_config::aggregation_mode, rl_config::channel_enable, data, rl_config::digital_enable, ERROR, rl_config::file_enable, rl_config::file_format, rl_timestamp::nsec, PRU_DIGITAL_I1L_VALID_MASK, PRU_DIGITAL_I2L_VALID_MASK, PRU_DIGITAL_INPUT1_MASK, PRU_DIGITAL_INPUT_MASK, RL_AGGREGATION_MODE_AVERAGE, RL_AGGREGATION_MODE_DOWNSAMPLE, RL_CHANNEL_COUNT, RL_CHANNEL_DIGITAL_COUNT, RL_CONFIG_CHANNEL_I1L, RL_CONFIG_CHANNEL_I2L, RL_FILE_CSV_DELIMITER, RL_FILE_FORMAT_CSV, RL_FILE_FORMAT_RLD, rl_log(), RL_LOG_ERROR, RL_LOG_WARNING, RL_SAMPLE_RATE_MIN, rl_config::sample_rate, and rl_timestamp::sec.

Referenced by pru_sample().

Here is the call graph for this function:

◆ rl_file_get_ambient_file_name()

char * rl_file_get_ambient_file_name ( char const *const data_file_name )

Derive the ambient file name from the data file name.

Parameters

data_file_name The data file name

Returns: Pointer to the buffer of the derived ambient file name

Definition at line 94 of file rl_file.c.

References RL_FILE_AMBIENT_SUFFIX.

Referenced by hw_sample(), and pru_sample().

◆ rl_file_setup_ambient_header()

void rl_file_setup_ambient_header	(	rl_file_header_t *const	file_header,
		rl_config_t const *const	config )

Set up ambient file header with current configuration.

Parameters

file_header	The file header data structure to set up
config	Current measurement configuration

Definition at line 206 of file rl_file.c.

References rl_file_header::comment, rl_config::file_comment, and rl_file_setup_ambient_channels().

Referenced by pru_sample().

Here is the call graph for this function:

◆ rl_file_setup_ambient_lead_in()

void rl_file_setup_ambient_lead_in	(	rl_file_lead_in_t *const	lead_in,
		rl_config_t const *const	config )

Set up ambient file header lead-in with current configuration.

Parameters

lead_in	The file lead-in data structure to set up
config	Current measurement configuration

Definition at line 160 of file rl_file.c.

References rl_file_lead_in::channel_bin_count, rl_file_lead_in::channel_count, rl_file_lead_in::comment_length, create_time_stamp(), rl_file_lead_in::data_block_count, rl_file_lead_in::data_block_size, rl_file_lead_in::file_magic, rl_file_lead_in::file_version, get_mac_addr(), rl_file_lead_in::header_length, rl_file_lead_in::mac_address, RL_FILE_AMBIENT_DATA_BLOCK_SIZE, RL_FILE_COMMENT_ALIGNMENT_BYTES, RL_FILE_MAGIC, RL_FILE_VERSION, RL_SENSOR_SAMPLE_RATE, rl_file_lead_in::sample_count, rl_file_lead_in::sample_rate, rl_status::sensor_count, rl_file_lead_in::start_time, and rl_config::update_rate.

Referenced by pru_sample().

Here is the call graph for this function:

◆ rl_file_setup_data_header()

void rl_file_setup_data_header	(	rl_file_header_t *const	file_header,
		rl_config_t const *const	config )

Set up data file header with current configuration.

Parameters

file_header	The file header data structure to set up
config	Current measurement configuration

Definition at line 195 of file rl_file.c.

References rl_file_header::comment, rl_config::file_comment, and rl_file_setup_data_channels().

Referenced by pru_sample().

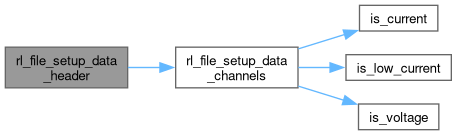

Here is the call graph for this function:

◆ rl_file_setup_data_lead_in()

void rl_file_setup_data_lead_in	(	rl_file_lead_in_t *const	lead_in,
		rl_config_t const *const	config )

Set up data file header lead-in with current configuration.

Parameters

lead_in	The file lead-in data structure to set up
config	Current measurement configuration

Definition at line 118 of file rl_file.c.

References rl_file_lead_in::channel_bin_count, rl_file_lead_in::channel_count, rl_config::channel_enable, rl_file_lead_in::comment_length, count_channels(), create_time_stamp(), rl_file_lead_in::data_block_count, rl_file_lead_in::data_block_size, rl_config::digital_enable, rl_file_lead_in::file_magic, rl_file_lead_in::file_version, get_mac_addr(), rl_file_lead_in::header_length, i1l_valid_channel, i2l_valid_channel, rl_file_lead_in::mac_address, RL_CHANNEL_DIGITAL_COUNT, RL_CONFIG_CHANNEL_I1L, RL_CONFIG_CHANNEL_I2L, RL_FILE_COMMENT_ALIGNMENT_BYTES, RL_FILE_MAGIC, RL_FILE_VERSION, rl_file_lead_in::sample_count, rl_config::sample_rate, rl_file_lead_in::sample_rate, rl_file_lead_in::start_time, and rl_config::update_rate.

Referenced by pru_sample().

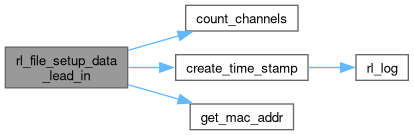

Here is the call graph for this function:

◆ rl_file_store_header_bin()

void rl_file_store_header_bin	(	FILE *	file_handle,
		rl_file_header_t *const	file_header )

Store file header to file (in binary format).

Parameters

file_handle	Data file to write to
file_header	The file header data structure to store to the file

Definition at line 217 of file rl_file.c.

References rl_file_header::channel, rl_file_lead_in::channel_bin_count, rl_file_lead_in::channel_count, rl_file_header::comment, rl_file_lead_in::comment_length, rl_file_lead_in::header_length, rl_file_header::lead_in, and RL_FILE_COMMENT_ALIGNMENT_BYTES.

Referenced by pru_sample().

◆ rl_file_store_header_csv()

void rl_file_store_header_csv	(	FILE *	file_handle,
		rl_file_header_t const *const	file_header )

Store file header to file (in CSV format).

Parameters

file_handle	Data file to write to
file_header	The file header data structure to store to the file

Definition at line 254 of file rl_file.c.

References rl_file_header::channel, rl_file_lead_in::channel_bin_count, rl_file_lead_in::channel_count, rl_file_channel::channel_scale, rl_file_header::comment, rl_file_lead_in::data_block_count, rl_file_lead_in::data_block_size, rl_file_lead_in::file_version, rl_file_header::lead_in, rl_file_lead_in::mac_address, MAC_ADDRESS_LENGTH, rl_file_channel::name, RL_SCALE_MICRO, RL_SCALE_MILLI, RL_SCALE_NANO, RL_SCALE_TEN_NANO, RL_SCALE_TEN_PICO, RL_UNIT_AMPERE, RL_UNIT_SECOND, RL_UNIT_VOLT, rl_file_lead_in::sample_count, rl_file_lead_in::sample_rate, rl_timestamp::sec, rl_file_lead_in::start_time, and rl_file_channel::unit.

Referenced by pru_sample().

◆ rl_file_update_header_bin()

void rl_file_update_header_bin	(	FILE *	file_handle,
		rl_file_header_t const *const	file_header )

Update file with new header lead-in (to write current sample count) in binary format.

Parameters

file_handle	Data file to write to
file_header	The file header data structure to store to the file

Definition at line 324 of file rl_file.c.

References rl_file_header::lead_in.

Referenced by pru_sample().

◆ rl_file_update_header_csv()

void rl_file_update_header_csv	(	FILE *	file_handle,
		rl_file_header_t const *const	file_header )

Update file with new header lead-in (to write current sample count) in CSV format.

Parameters

file_handle	Data file to write to
file_header	The file header data structure to store to the file

Definition at line 334 of file rl_file.c.

References rl_file_lead_in::data_block_count, rl_file_lead_in::data_block_size, rl_file_lead_in::file_version, rl_file_header::lead_in, and rl_file_lead_in::sample_count.

Referenced by pru_sample().

◆ rl_unit_to_string()

char * rl_unit_to_string ( rl_unit_t unit )

Get the string representing the unit.

Parameters

unit	The unit to convert into a string

Returns: Pointer to the unit string or NULL if unit not defined

Definition at line 85 of file rl_file.c.

References RL_UNIT_NAMES.

Referenced by rl_socket_metadata().

Data Structures

Macros

Typedefs

Enumerations

Functions

Macro Definition Documentation

◆ RL_FILE_AMBIENT_DATA_BLOCK_SIZE

◆ RL_FILE_AMBIENT_SUFFIX

◆ RL_FILE_CHANNEL_NAME_LENGTH

◆ RL_FILE_CHANNEL_NO_LINK

◆ RL_FILE_COMMENT_ALIGNMENT_BYTES

◆ RL_FILE_CSV_DELIMITER

◆ RL_FILE_MAGIC

◆ RL_FILE_VERSION

◆ RL_SCALE_GIGA

◆ RL_SCALE_KILO

◆ RL_SCALE_MEGA

◆ RL_SCALE_MICRO

◆ RL_SCALE_MILLI

◆ RL_SCALE_NANO

◆ RL_SCALE_PICO

◆ RL_SCALE_TEN_NANO

◆ RL_SCALE_TEN_PICO

◆ RL_SCALE_TERA

◆ RL_SCALE_UNIT

Typedef Documentation

◆ rl_file_channel_t

◆ rl_file_header_t

◆ rl_file_lead_in_t

◆ rl_unit_t

Enumeration Type Documentation

◆ rl_unit

Function Documentation

◆ rl_file_add_ambient_block()

◆ rl_file_add_data_block()

◆ rl_file_get_ambient_file_name()

◆ rl_file_setup_ambient_header()

◆ rl_file_setup_ambient_lead_in()

◆ rl_file_setup_data_header()

◆ rl_file_setup_data_lead_in()

◆ rl_file_store_header_bin()

◆ rl_file_store_header_csv()

◆ rl_file_update_header_bin()

◆ rl_file_update_header_csv()

◆ rl_unit_to_string()
