#include <stdbool.h>
#include <stdint.h>
#include <linux/limits.h>
#include <sys/types.h>
#include "version.h"

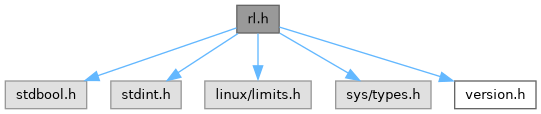

Include dependency graph for rl.h:

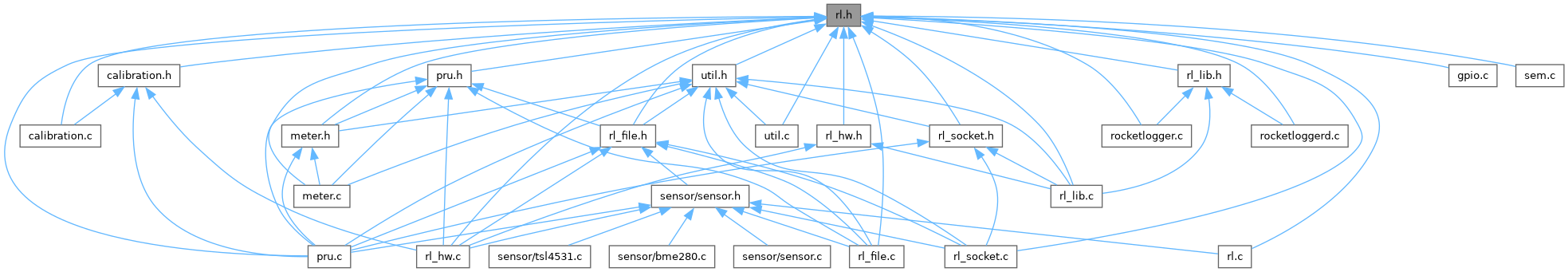

This graph shows which files directly or indirectly include this file:

Go to the source code of this file.

Data Structures
struct	rl_config

struct	rl_status

Macros
#define	SUCCESS (0)
	Function return value for successful completion.

#define	ERROR (-1)
	Function return value for errors (use errno to indicate the error)

#define	RL_MEASUREMENT_LOG_FILE "/var/log/rocketlogger/rocketlogger.log"
	RocketLogger measurement log file.

#define	RL_DAEMON_LOG_FILE "/var/log/rocketlogger/rocketloggerd.log"
	RocketLogger daemon log file.

#define	RL_PID_FILE "/run/rocketlogger.pid"
	Process ID file for the RocketLogger process.

#define	RL_CHANNEL_COUNT 9
	Number of RocketLogger analog channels.

#define	RL_CHANNEL_SWITCHED_COUNT 2
	Number of RocketLogger switched channels (allowing to force range)

#define	RL_CHANNEL_DIGITAL_COUNT 6
	Number of RocketLogger digital channels.

#define	RL_SAMPLE_RATE_MIN 1000
	Minimum native sample rate of the ADC in samples per second.

#define	RL_SENSOR_COUNT_MAX 128
	Maximum number of sensors that can be connected to the system.

#define	RL_SENSOR_SAMPLE_RATE 1
	Ambient sensor read out rate in samples per second.

#define	RL_CALIBRATION_USER_FILE "/home/rocketlogger/.config/rocketlogger/calibration.dat"
	User folder calibration file path.

#define	RL_CALIBRATION_SYSTEM_FILE "/etc/rocketlogger/calibration.dat"
	Default system wide calibration file path.

#define	RL_CONFIG_USER_FILE "/home/rocketlogger/.config/rocketlogger/settings.dat"
	User configuration file path.

#define	RL_CONFIG_SYSTEM_FILE "/etc/rocketlogger/settings.dat"
	Default system configuration file path.

#define	RL_CONFIG_VERSION 0x03
	Default system configuration file path.

#define	RL_CONFIG_CHANNEL_V1 0
	Configuration channel indexes.

#define	RL_CONFIG_CHANNEL_V2 1

#define	RL_CONFIG_CHANNEL_V3 2

#define	RL_CONFIG_CHANNEL_V4 3

#define	RL_CONFIG_CHANNEL_I1L 4

#define	RL_CONFIG_CHANNEL_I1H 5

#define	RL_CONFIG_CHANNEL_I2L 6

#define	RL_CONFIG_CHANNEL_I2H 7

#define	RL_CONFIG_CHANNEL_DT 8

#define	RL_CONFIG_CHANNEL_ENABLE_DEFAULT { true, true, true, true, true, true, true, true, false }
	Configuration channel enable default.

#define	RL_CONFIG_CHANNEL_I1 0
	Configuration merged/forced channel indexes.

#define	RL_CONFIG_CHANNEL_I2 1

#define	RL_CONFIG_CHANNEL_FORCE_RANGE_DEFAULT { false, false }
	Configuration channel force range default.

#define	RL_CONFIG_FILE_DIR_DEFAULT "/home/rocketlogger/data"
	Configuration data file directory default.

#define	RL_CONFIG_FILE_DEFAULT RL_CONFIG_FILE_DIR_DEFAULT "/data.rld"
	Configuration file name default.

#define	RL_CONFIG_FILE_SIZE_MIN (5UL * 1000UL * 1000UL)
	Minimum measurement split file size (5 MB to fit largest block at max rate)

#define	RL_CONFIG_FILE_SIZE_DEFAULT (1000UL * 1000UL * 1000UL)
	Configuration file size default.

#define	RL_CONFIG_COMMENT_DEFAULT "Sampled using the RocketLogger"
	Configuration file comment default.

#define	RL_SHMEM_STATUS_KEY 1111
	Key for status shared memory (used for creation)

#define	RL_SHMEM_DATA_KEY 4443
	Key for web shared memory (used for creation)

#define	RL_SHMEM_PERMISSIONS 0666
	Permissions for shared memory.

#define	RL_ZMQ_STATUS_SOCKET "tcp://127.0.0.1:8276"
	ZeroMQ socket identifier for status publishing.

#define	RL_ZMQ_DATA_SOCKET "tcp://127.0.0.1:8277"
	ZeroMQ socket identifier for data publishing status.

Typedefs
typedef enum rl_aggregation_mode	rl_aggregation_mode_t

typedef enum rl_file_format	rl_file_format_t

typedef struct rl_config	rl_config_t

typedef struct rl_status	rl_status_t

Enumerations
enum	rl_aggregation_mode { RL_AGGREGATION_MODE_DOWNSAMPLE , RL_AGGREGATION_MODE_AVERAGE }

enum	rl_file_format { RL_FILE_FORMAT_CSV , RL_FILE_FORMAT_RLD }

Functions
void	rl_config_print (rl_config_t const *const config)

void	rl_config_print_cmd (rl_config_t const *const config)

void	rl_config_print_json (rl_config_t const *const config)

char *	rl_config_get_json (rl_config_t const *const config)

void	rl_config_reset (rl_config_t *const config)

int	rl_config_read_default (rl_config_t *const config)

int	rl_config_write_default (rl_config_t const *const config)

int	rl_config_validate (rl_config_t const *const config)

pid_t	rl_pid_get (void)

int	rl_pid_set (pid_t pid)

void	rl_status_reset (rl_status_t *const status)

int	rl_status_pub_init (void)

int	rl_status_pub_deinit (void)

int	rl_status_shm_init (void)

int	rl_status_shm_deinit (void)

int	rl_status_read (rl_status_t *const status)

int	rl_status_write (rl_status_t *const status)

void	rl_status_print (rl_status_t const *const status)

void	rl_status_print_json (rl_status_t const *const status)

char *	rl_status_get_json (rl_status_t const *const status)

Variables
char const *const	RL_CHANNEL_NAMES [RL_CHANNEL_COUNT]
	RocketLogger channel names sorted by name.

char const *const	RL_CHANNEL_FORCE_NAMES [RL_CHANNEL_SWITCHED_COUNT]
	RocketLogger force range channel names.

char const *const	RL_CHANNEL_DIGITAL_NAMES [RL_CHANNEL_DIGITAL_COUNT]
	RocketLogger digital channel names.

char const *const	RL_CHANNEL_VALID_NAMES [RL_CHANNEL_SWITCHED_COUNT]
	RocketLogger valid channel names.

rl_status_t	rl_status
	Global RocketLogger status variable.

Macro Definition Documentation

◆ ERROR

#define ERROR (-1)

Function return value for errors (use errno to indicate the error)

Definition at line 46 of file rl.h.

◆ RL_CALIBRATION_SYSTEM_FILE

#define RL_CALIBRATION_SYSTEM_FILE "/etc/rocketlogger/calibration.dat"

Default system wide calibration file path.

Definition at line 72 of file rl.h.

◆ RL_CALIBRATION_USER_FILE

#define RL_CALIBRATION_USER_FILE "/home/rocketlogger/.config/rocketlogger/calibration.dat"

User folder calibration file path.

Definition at line 69 of file rl.h.

◆ RL_CHANNEL_COUNT

#define RL_CHANNEL_COUNT 9

Number of RocketLogger analog channels.

Definition at line 56 of file rl.h.

◆ RL_CHANNEL_DIGITAL_COUNT

#define RL_CHANNEL_DIGITAL_COUNT 6

Number of RocketLogger digital channels.

Definition at line 60 of file rl.h.

◆ RL_CHANNEL_SWITCHED_COUNT

#define RL_CHANNEL_SWITCHED_COUNT 2

Number of RocketLogger switched channels (allowing to force range)

Definition at line 58 of file rl.h.

◆ RL_CONFIG_CHANNEL_DT

#define RL_CONFIG_CHANNEL_DT 8

Definition at line 91 of file rl.h.

◆ RL_CONFIG_CHANNEL_ENABLE_DEFAULT

#define RL_CONFIG_CHANNEL_ENABLE_DEFAULT { true, true, true, true, true, true, true, true, false }

Configuration channel enable default.

Definition at line 93 of file rl.h.

◆ RL_CONFIG_CHANNEL_FORCE_RANGE_DEFAULT

#define RL_CONFIG_CHANNEL_FORCE_RANGE_DEFAULT { false, false }

Configuration channel force range default.

Definition at line 99 of file rl.h.

◆ RL_CONFIG_CHANNEL_I1

#define RL_CONFIG_CHANNEL_I1 0

Configuration merged/forced channel indexes.

Definition at line 96 of file rl.h.

◆ RL_CONFIG_CHANNEL_I1H

#define RL_CONFIG_CHANNEL_I1H 5

Definition at line 88 of file rl.h.

◆ RL_CONFIG_CHANNEL_I1L

#define RL_CONFIG_CHANNEL_I1L 4

Definition at line 87 of file rl.h.

◆ RL_CONFIG_CHANNEL_I2

#define RL_CONFIG_CHANNEL_I2 1

Definition at line 97 of file rl.h.

◆ RL_CONFIG_CHANNEL_I2H

#define RL_CONFIG_CHANNEL_I2H 7

Definition at line 90 of file rl.h.

◆ RL_CONFIG_CHANNEL_I2L

#define RL_CONFIG_CHANNEL_I2L 6

Definition at line 89 of file rl.h.

◆ RL_CONFIG_CHANNEL_V1

#define RL_CONFIG_CHANNEL_V1 0

Configuration channel indexes.

Definition at line 83 of file rl.h.

◆ RL_CONFIG_CHANNEL_V2

#define RL_CONFIG_CHANNEL_V2 1

Definition at line 84 of file rl.h.

◆ RL_CONFIG_CHANNEL_V3

#define RL_CONFIG_CHANNEL_V3 2

Definition at line 85 of file rl.h.

◆ RL_CONFIG_CHANNEL_V4

#define RL_CONFIG_CHANNEL_V4 3

Definition at line 86 of file rl.h.

◆ RL_CONFIG_COMMENT_DEFAULT

#define RL_CONFIG_COMMENT_DEFAULT "Sampled using the RocketLogger"

Configuration file comment default.

Definition at line 111 of file rl.h.

◆ RL_CONFIG_FILE_DEFAULT

#define RL_CONFIG_FILE_DEFAULT RL_CONFIG_FILE_DIR_DEFAULT "/data.rld"

Configuration file name default.

Definition at line 105 of file rl.h.

◆ RL_CONFIG_FILE_DIR_DEFAULT

#define RL_CONFIG_FILE_DIR_DEFAULT "/home/rocketlogger/data"

Configuration data file directory default.

Definition at line 103 of file rl.h.

◆ RL_CONFIG_FILE_SIZE_DEFAULT

#define RL_CONFIG_FILE_SIZE_DEFAULT (1000UL * 1000UL * 1000UL)

Configuration file size default.

Definition at line 109 of file rl.h.

◆ RL_CONFIG_FILE_SIZE_MIN

#define RL_CONFIG_FILE_SIZE_MIN (5UL * 1000UL * 1000UL)

Minimum measurement split file size (5 MB to fit largest block at max rate)

Definition at line 107 of file rl.h.

◆ RL_CONFIG_SYSTEM_FILE

#define RL_CONFIG_SYSTEM_FILE "/etc/rocketlogger/settings.dat"

Default system configuration file path.

Definition at line 78 of file rl.h.

◆ RL_CONFIG_USER_FILE

#define RL_CONFIG_USER_FILE "/home/rocketlogger/.config/rocketlogger/settings.dat"

User configuration file path.

Definition at line 75 of file rl.h.

◆ RL_CONFIG_VERSION

#define RL_CONFIG_VERSION 0x03

Default system configuration file path.

Definition at line 81 of file rl.h.

◆ RL_DAEMON_LOG_FILE

#define RL_DAEMON_LOG_FILE "/var/log/rocketlogger/rocketloggerd.log"

RocketLogger daemon log file.

Definition at line 51 of file rl.h.

◆ RL_MEASUREMENT_LOG_FILE

#define RL_MEASUREMENT_LOG_FILE "/var/log/rocketlogger/rocketlogger.log"

RocketLogger measurement log file.

Definition at line 49 of file rl.h.

◆ RL_PID_FILE

#define RL_PID_FILE "/run/rocketlogger.pid"

Process ID file for the RocketLogger process.

Definition at line 53 of file rl.h.

◆ RL_SAMPLE_RATE_MIN

#define RL_SAMPLE_RATE_MIN 1000

Minimum native sample rate of the ADC in samples per second.

Definition at line 62 of file rl.h.

◆ RL_SENSOR_COUNT_MAX

#define RL_SENSOR_COUNT_MAX 128

Maximum number of sensors that can be connected to the system.

Definition at line 64 of file rl.h.

◆ RL_SENSOR_SAMPLE_RATE

#define RL_SENSOR_SAMPLE_RATE 1

Ambient sensor read out rate in samples per second.

Definition at line 66 of file rl.h.

◆ RL_SHMEM_DATA_KEY

#define RL_SHMEM_DATA_KEY 4443

Key for web shared memory (used for creation)

Definition at line 116 of file rl.h.

◆ RL_SHMEM_PERMISSIONS

#define RL_SHMEM_PERMISSIONS 0666

Permissions for shared memory.

Definition at line 118 of file rl.h.

◆ RL_SHMEM_STATUS_KEY

#define RL_SHMEM_STATUS_KEY 1111

Key for status shared memory (used for creation)

Definition at line 114 of file rl.h.

◆ RL_ZMQ_DATA_SOCKET

#define RL_ZMQ_DATA_SOCKET "tcp://127.0.0.1:8277"

ZeroMQ socket identifier for data publishing status.

Definition at line 123 of file rl.h.

◆ RL_ZMQ_STATUS_SOCKET

#define RL_ZMQ_STATUS_SOCKET "tcp://127.0.0.1:8276"

ZeroMQ socket identifier for status publishing.

Definition at line 121 of file rl.h.

◆ SUCCESS

#define SUCCESS (0)

Function return value for successful completion.

Definition at line 44 of file rl.h.

Typedef Documentation

◆ rl_aggregation_mode_t

typedef enum rl_aggregation_mode rl_aggregation_mode_t

Type definition for RocketLogger data aggregation mode.

Definition at line 136 of file rl.h.

◆ rl_config_t

typedef struct rl_config rl_config_t

Type definition for RocketLogger configuration.

Definition at line 196 of file rl.h.

◆ rl_file_format_t

typedef enum rl_file_format rl_file_format_t

Type definition for RocketLogger file format.

Definition at line 149 of file rl.h.

◆ rl_status_t

typedef struct rl_status rl_status_t

Type definition for RocketLogger configuration.

Definition at line 231 of file rl.h.

Enumeration Type Documentation

◆ rl_aggregation_mode

enum rl_aggregation_mode

RocketLogger data aggregation modes.

Enumerator
RL_AGGREGATION_MODE_DOWNSAMPLE
RL_AGGREGATION_MODE_AVERAGE	Aggregate using down sampling.

Definition at line 128 of file rl.h.

◆ rl_file_format

enum rl_file_format

RocketLogger file formats.

Enumerator
RL_FILE_FORMAT_CSV
RL_FILE_FORMAT_RLD	CSV format.

Definition at line 141 of file rl.h.

Function Documentation

◆ rl_config_get_json()

char * rl_config_get_json ( rl_config_t const *const config )

Get RocketLogger configuration as JSON data structure string.

Parameters

config The measurement configuration

Returns: The configuration as JSON formatted string

Definition at line 280 of file rl.c.

References rl_config::ambient_enable, rl_config::background_enable, rl_config::calibration_ignore, rl_config::channel_enable, rl_config::channel_force_range, rl_config::digital_enable, rl_config::file_comment, rl_config::file_enable, rl_config::file_format, rl_config::file_name, rl_config::file_size, rl_config::interactive_enable, RL_CHANNEL_COUNT, RL_CHANNEL_FORCE_NAMES, RL_CHANNEL_NAMES, RL_CHANNEL_SWITCHED_COUNT, RL_FILE_FORMAT_CSV, RL_FILE_FORMAT_RLD, RL_JSON_BUFFER_SIZE, rl_config::sample_limit, rl_config::sample_rate, snprintfcat(), rl_config::update_rate, and rl_config::web_enable.

Referenced by rl_config_print_json(), and rl_status_get_json().

Here is the call graph for this function:

◆ rl_config_print()

void rl_config_print ( rl_config_t const *const config )

Print RocketLogger configuration as text output.

Parameters

config The measurement configuration to print

Definition at line 142 of file rl.c.

References rl_config::aggregation_mode, rl_config::background_enable, rl_config::calibration_ignore, rl_config::channel_enable, rl_config::channel_force_range, rl_config::digital_enable, rl_config::file_enable, rl_config::file_format, rl_config::file_name, rl_config::file_size, rl_config::interactive_enable, RL_AGGREGATION_MODE_AVERAGE, RL_AGGREGATION_MODE_DOWNSAMPLE, RL_CONFIG_CHANNEL_DT, RL_CONFIG_CHANNEL_I1, RL_CONFIG_CHANNEL_I1H, RL_CONFIG_CHANNEL_I1L, RL_CONFIG_CHANNEL_I2, RL_CONFIG_CHANNEL_I2H, RL_CONFIG_CHANNEL_I2L, RL_CONFIG_CHANNEL_V1, RL_CONFIG_CHANNEL_V2, RL_CONFIG_CHANNEL_V3, RL_CONFIG_CHANNEL_V4, RL_FILE_FORMAT_CSV, RL_FILE_FORMAT_RLD, rl_config::sample_limit, rl_config::sample_rate, rl_config::update_rate, and rl_config::web_enable.

Referenced by main().

◆ rl_config_print_cmd()

void rl_config_print_cmd ( rl_config_t const *const config )

Print RocketLogger command line string correpsinding to the current configuration.

Parameters

config The measurement configuration to print

Definition at line 211 of file rl.c.

References rl_config::aggregation_mode, rl_config::ambient_enable, rl_config::background_enable, rl_config::calibration_ignore, rl_config::channel_enable, rl_config::channel_force_range, rl_config::digital_enable, rl_config::file_comment, rl_config::file_enable, rl_config::file_format, rl_config::file_name, rl_config::file_size, rl_config::interactive_enable, RL_AGGREGATION_MODE_AVERAGE, RL_AGGREGATION_MODE_DOWNSAMPLE, RL_CHANNEL_COUNT, RL_CHANNEL_FORCE_NAMES, RL_CHANNEL_NAMES, RL_CHANNEL_SWITCHED_COUNT, RL_FILE_FORMAT_RLD, rl_config::sample_limit, rl_config::sample_rate, rl_config::update_rate, and rl_config::web_enable.

Referenced by main().

◆ rl_config_print_json()

void rl_config_print_json ( rl_config_t const *const config )

Print RocketLogger configuration as JSON data structure.

Parameters

config The measurement configuration to print

Definition at line 275 of file rl.c.

References rl_config_get_json().

Referenced by main().

Here is the call graph for this function:

◆ rl_config_read_default()

int rl_config_read_default ( rl_config_t *const config )

Read default configuration from file.

Try to read user configuration otherwis fallback to system configuration.

Parameters

config The measurement configuration structure to store the default to

Returns: Returns 0 on success, negative on failure with errno set accordingly

Todo:: drop once comment is stored together with default config

Definition at line 364 of file rl.c.

References rl_config::config_version, ERROR, rl_config::file_comment, RL_CONFIG_COMMENT_DEFAULT, rl_config_reset(), RL_CONFIG_SYSTEM_FILE, RL_CONFIG_USER_FILE, RL_CONFIG_VERSION, rl_log(), RL_LOG_ERROR, RL_LOG_WARNING, and SUCCESS.

Referenced by main().

Here is the call graph for this function:

◆ rl_config_reset()

void rl_config_reset ( rl_config_t *const config )

Reset configuration to standard values.

Parameters

config The measurement configuration to reset

Definition at line 360 of file rl.c.

References rl_config_default.

Referenced by adc_calibrate(), main(), and rl_config_read_default().

◆ rl_config_validate()

int rl_config_validate ( rl_config_t const *const config )

Validate RocketLogger configuration.

Parameters

config The measurement configuration to validate

Returns: Returns 0 on success, negative on failure with errno set accordingly

Definition at line 431 of file rl.c.

References rl_config::background_enable, rl_config::config_version, ERROR, rl_config::file_comment, rl_config::file_size, rl_config::interactive_enable, is_printable_string(), RL_CONFIG_FILE_SIZE_MIN, RL_CONFIG_VERSION, rl_log(), RL_LOG_ERROR, RL_SAMPLE_RATE_MIN, rl_config::sample_rate, SUCCESS, and rl_config::update_rate.

Referenced by main().

Here is the call graph for this function:

◆ rl_config_write_default()

int rl_config_write_default ( rl_config_t const *const config )

Write provided configuration as default to file.

Parameters

config The measurement configuration write as default configuration

Returns: Returns 0 on success, negative on failure with errno set accordingly

Definition at line 414 of file rl.c.

References ERROR, RL_CONFIG_USER_FILE, rl_log(), RL_LOG_ERROR, and SUCCESS.

Referenced by main().

Here is the call graph for this function:

◆ rl_pid_get()

pid_t rl_pid_get ( void )

Get process ID (PID) of background sampling process.

Returns: If running in background the PID of the background or zero if not running, a negative value is returned on failure with errno set accordingly

Definition at line 508 of file rl.c.

References RL_PID_FILE.

Referenced by rl_stop().

◆ rl_pid_set()

int rl_pid_set ( pid_t pid )

Store process ID (PID) of the RocketLogger process.

Parameters

pid	The PID of the running process to sture

Returns: Returns 0 on success, negative on failure with errno set accordingly

Definition at line 521 of file rl.c.

References ERROR, rl_log(), RL_LOG_ERROR, RL_PID_FILE, and SUCCESS.

Referenced by pru_sample().

Here is the call graph for this function:

◆ rl_status_get_json()

char * rl_status_get_json ( rl_status_t const *const status )

Get RocketLogger status as JSON data structure string.

Parameters

status The status data structure

Returns: The status as JSON formatted string

Definition at line 736 of file rl.c.

References rl_status::buffer_count, rl_status::calibration_file, rl_status::calibration_time, rl_status::config, rl_status::disk_free, rl_status::disk_free_permille, rl_status::disk_use_rate, rl_status::error, rl_config_get_json(), RL_JSON_BUFFER_SIZE, rl_status::sample_count, rl_status::sampling, rl_status::sensor_available, rl_status::sensor_count, SENSOR_REGISTRY, SENSOR_REGISTRY_SIZE, and snprintfcat().

Referenced by rl_status_print_json(), and rl_status_write().

Here is the call graph for this function:

◆ rl_status_print()

void rl_status_print ( rl_status_t const *const status )

Print RocketLogger status as text output.

Parameters

status The status data structure to print

Definition at line 709 of file rl.c.

References rl_status::buffer_count, rl_status::calibration_file, rl_status::calibration_time, rl_status::disk_free, rl_status::disk_free_permille, rl_status::disk_use_rate, rl_status::error, rl_status::sample_count, rl_status::sampling, rl_status::sensor_available, rl_status::sensor_count, SENSOR_REGISTRY, and SENSOR_REGISTRY_SIZE.

Referenced by main().

◆ rl_status_print_json()

void rl_status_print_json ( rl_status_t const *const status )

Print RocketLogger status as JSON data structure.

Parameters

status The status data structure to print

Definition at line 731 of file rl.c.

References rl_status_get_json().

Referenced by main().

Here is the call graph for this function:

◆ rl_status_pub_deinit()

int rl_status_pub_deinit ( void )

Deinitialize the RocketLogger status publishing.

Returns: Returns 0 on success, negative on failure with errno set accordingly

Definition at line 554 of file rl.c.

References SUCCESS, zmq_status_context, and zmq_status_publisher.

Referenced by rl_run().

◆ rl_status_pub_init()

int rl_status_pub_init ( void )

Initialize the RocketLogger status publishing.

Returns: Returns 0 on success, negative on failure with errno set accordingly

Definition at line 539 of file rl.c.

References ERROR, rl_log(), RL_LOG_ERROR, RL_ZMQ_STATUS_SOCKET, SUCCESS, zmq_status_context, and zmq_status_publisher.

Referenced by rl_run().

Here is the call graph for this function:

◆ rl_status_read()

int rl_status_read ( rl_status_t *const status )

Read the status of the RocketLogger from shared memory.

Parameters

status The status data structure to write the read status to

Returns: Returns 0 on success, negative on failure with errno set accordingly

Definition at line 602 of file rl.c.

References rl_status::config, ERROR, rl_log(), RL_LOG_ERROR, RL_SHMEM_PERMISSIONS, RL_SHMEM_STATUS_KEY, and SUCCESS.

Referenced by adc_calibrate(), button_interrupt_handler(), main(), and rl_get_status().

Here is the call graph for this function:

◆ rl_status_reset()

void rl_status_reset ( rl_status_t *const status )

Get the RocketLogger default status.

Parameters

status The status data structure to write the default value to

Definition at line 535 of file rl.c.

References rl_status_default.

Referenced by rl_get_status(), rl_is_sampling(), and rl_run().

◆ rl_status_shm_deinit()

int rl_status_shm_deinit ( void )

Deinitialize and remove the shared memory for the RocketLogger status.

Returns: Returns 0 on success, negative on failure with errno set accordingly

Definition at line 579 of file rl.c.

References ERROR, rl_log(), RL_LOG_ERROR, RL_SHMEM_PERMISSIONS, RL_SHMEM_STATUS_KEY, and SUCCESS.

Referenced by main().

Here is the call graph for this function:

◆ rl_status_shm_init()

int rl_status_shm_init ( void )

Create and initialize the shared memory for the RocketLogger status.

Returns: Returns 0 on success, negative on failure with errno set accordingly

Definition at line 565 of file rl.c.

References ERROR, rl_log(), RL_LOG_ERROR, RL_SHMEM_PERMISSIONS, RL_SHMEM_STATUS_KEY, and SUCCESS.

Referenced by main().

Here is the call graph for this function:

◆ rl_status_write()

int rl_status_write ( rl_status_t *const status )

Write new status of the RocketLogger to shared memory.

Parameters

status The status data structure to copy to the shared memory

Returns: Returns 0 on success, negative on failure with errno set accordingly

Definition at line 641 of file rl.c.

References rl_status::config, rl_status::disk_free, rl_status::disk_free_permille, ERROR, rl_config::file_name, fs_space_free(), fs_space_total(), RL_CONFIG_FILE_DIR_DEFAULT, rl_log(), RL_LOG_ERROR, RL_SHMEM_PERMISSIONS, RL_SHMEM_STATUS_KEY, rl_status_get_json(), SUCCESS, and zmq_status_publisher.

Referenced by adc_calibrate(), hw_deinit(), hw_init(), pru_sample(), and rl_run().

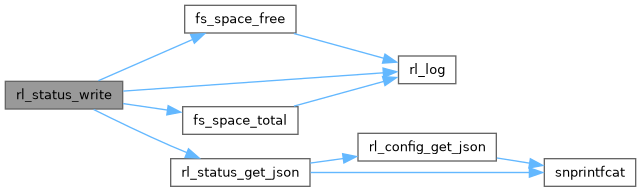

Here is the call graph for this function:

Variable Documentation

◆ RL_CHANNEL_DIGITAL_NAMES

char const* const RL_CHANNEL_DIGITAL_NAMES[RL_CHANNEL_DIGITAL_COUNT]

extern

RocketLogger digital channel names.

Definition at line 103 of file rl.c.

Referenced by meter_print_buffer(), and rl_file_setup_data_channels().

◆ RL_CHANNEL_FORCE_NAMES

char const* const RL_CHANNEL_FORCE_NAMES[RL_CHANNEL_SWITCHED_COUNT]

extern

RocketLogger force range channel names.

Definition at line 99 of file rl.c.

Referenced by rl_config_get_json(), and rl_config_print_cmd().

◆ RL_CHANNEL_NAMES

char const* const RL_CHANNEL_NAMES[RL_CHANNEL_COUNT]

extern

RocketLogger channel names sorted by name.

Definition at line 95 of file rl.c.

Referenced by meter_print_buffer(), rl_config_get_json(), rl_config_print_cmd(), rl_file_setup_data_channels(), and rl_socket_metadata().

◆ RL_CHANNEL_VALID_NAMES

char const* const RL_CHANNEL_VALID_NAMES[RL_CHANNEL_SWITCHED_COUNT]

extern

RocketLogger valid channel names.

Definition at line 107 of file rl.c.

Referenced by rl_file_setup_data_channels().

◆ rl_status

rl_status_t rl_status

extern

Global RocketLogger status variable.

Definition at line 112 of file rl.c.

Data Structures

Macros

Typedefs

Enumerations

Functions

Variables

Macro Definition Documentation

◆ ERROR

◆ RL_CALIBRATION_SYSTEM_FILE

◆ RL_CALIBRATION_USER_FILE

◆ RL_CHANNEL_COUNT

◆ RL_CHANNEL_DIGITAL_COUNT

◆ RL_CHANNEL_SWITCHED_COUNT

◆ RL_CONFIG_CHANNEL_DT

◆ RL_CONFIG_CHANNEL_ENABLE_DEFAULT

◆ RL_CONFIG_CHANNEL_FORCE_RANGE_DEFAULT

◆ RL_CONFIG_CHANNEL_I1

◆ RL_CONFIG_CHANNEL_I1H

◆ RL_CONFIG_CHANNEL_I1L

◆ RL_CONFIG_CHANNEL_I2

◆ RL_CONFIG_CHANNEL_I2H

◆ RL_CONFIG_CHANNEL_I2L

◆ RL_CONFIG_CHANNEL_V1

◆ RL_CONFIG_CHANNEL_V2

◆ RL_CONFIG_CHANNEL_V3

◆ RL_CONFIG_CHANNEL_V4

◆ RL_CONFIG_COMMENT_DEFAULT

◆ RL_CONFIG_FILE_DEFAULT

◆ RL_CONFIG_FILE_DIR_DEFAULT

◆ RL_CONFIG_FILE_SIZE_DEFAULT

◆ RL_CONFIG_FILE_SIZE_MIN

◆ RL_CONFIG_SYSTEM_FILE

◆ RL_CONFIG_USER_FILE

◆ RL_CONFIG_VERSION

◆ RL_DAEMON_LOG_FILE

◆ RL_MEASUREMENT_LOG_FILE

◆ RL_PID_FILE

◆ RL_SAMPLE_RATE_MIN

◆ RL_SENSOR_COUNT_MAX

◆ RL_SENSOR_SAMPLE_RATE

◆ RL_SHMEM_DATA_KEY

◆ RL_SHMEM_PERMISSIONS

◆ RL_SHMEM_STATUS_KEY

◆ RL_ZMQ_DATA_SOCKET

◆ RL_ZMQ_STATUS_SOCKET

◆ SUCCESS

Typedef Documentation

◆ rl_aggregation_mode_t

◆ rl_config_t

◆ rl_file_format_t

◆ rl_status_t

Enumeration Type Documentation

◆ rl_aggregation_mode

◆ rl_file_format

Function Documentation

◆ rl_config_get_json()

◆ rl_config_print()

◆ rl_config_print_cmd()

◆ rl_config_print_json()

◆ rl_config_read_default()

◆ rl_config_reset()

◆ rl_config_validate()

◆ rl_config_write_default()

◆ rl_pid_get()

◆ rl_pid_set()

◆ rl_status_get_json()

◆ rl_status_print()

◆ rl_status_print_json()

◆ rl_status_pub_deinit()

◆ rl_status_pub_init()

◆ rl_status_read()

◆ rl_status_reset()

◆ rl_status_shm_deinit()

◆ rl_status_shm_init()

◆ rl_status_write()

Variable Documentation

◆ RL_CHANNEL_DIGITAL_NAMES

◆ RL_CHANNEL_FORCE_NAMES

◆ RL_CHANNEL_NAMES

◆ RL_CHANNEL_VALID_NAMES
