#include <errno.h>
#include <stdint.h>
#include <stdio.h>
#include <stdlib.h>
#include <string.h>
#include <linux/limits.h>
#include <time.h>
#include "log.h"
#include "pru.h"
#include "rl.h"
#include "rl_file.h"
#include "sensor/sensor.h"
#include "util.h"

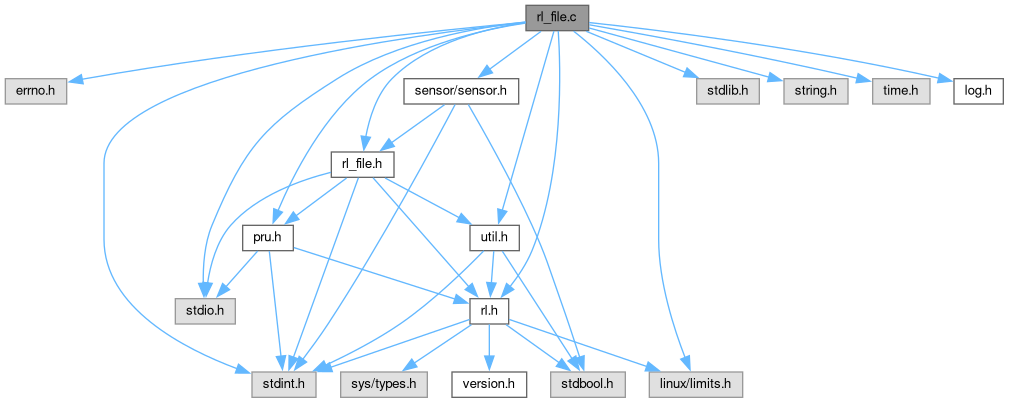

Include dependency graph for rl_file.c:

Functions
void	rl_file_setup_data_channels (rl_file_header_t const header, rl_config_t const const config)

void	rl_file_setup_ambient_channels (rl_file_header_t *const header)

char *	rl_unit_to_string (rl_unit_t const unit)

char *	rl_file_get_ambient_file_name (char const *const data_file_name)

void	rl_file_setup_data_lead_in (rl_file_lead_in_t const lead_in, rl_config_t const const config)

void	rl_file_setup_ambient_lead_in (rl_file_lead_in_t const lead_in, rl_config_t const const config)

void	rl_file_setup_data_header (rl_file_header_t const header, rl_config_t const const config)

void	rl_file_setup_ambient_header (rl_file_header_t const header, rl_config_t const const config)

void	rl_file_store_header_bin (FILE file_handle, rl_file_header_t const file_header)

void	rl_file_store_header_csv (FILE file_handle, rl_file_header_t const const file_header)

void	rl_file_update_header_bin (FILE file_handle, rl_file_header_t const const file_header)

void	rl_file_update_header_csv (FILE file_handle, rl_file_header_t const const file_header)

int	rl_file_add_data_block (FILE data_file, int32_t const analog_buffer, uint32_t const digital_buffer, size_t buffer_size, rl_timestamp_t const const timestamp_realtime, rl_timestamp_t const const timestamp_monotonic, rl_config_t const const config)

int	rl_file_add_ambient_block (FILE ambient_file, int32_t const ambient_buffer, size_t buffer_size, rl_timestamp_t const const timestamp_realtime, rl_timestamp_t const const timestamp_monotonic, rl_config_t const *const config)

Variables
char *	RL_UNIT_NAMES []

int	i1l_valid_channel = 0
	Global variable to determine i1l valid channel index. More...

int	i2l_valid_channel = 0
	Global variable to determine i2l valid channel index. More...

Function Documentation

◆ rl_file_add_ambient_block()

int rl_file_add_ambient_block	(	FILE *	ambient_file,
		int32_t const *	ambient_buffer,
		size_t	buffer_size,
		rl_timestamp_t const *const	timestamp_realtime,
		rl_timestamp_t const *const	timestamp_monotonic,
		rl_config_t const *const	config
	)

Handle the sensor data buffer to add a new block to the ambient file.

Parameters

ambient_file	Ambient file to write to
ambient_buffer	Ambient sensor data buffer to process
buffer_size	Number of sensor samples in the buffer
timestamp_realtime	Timestamp sampled from realtime clock
timestamp_monotonic	Timestamp sampled from monotonic clock
config	Current measurement configuration

Returns: Returns the number of data blocks written to the file, negative on failure with errno set accordingly

Definition at line 521 of file rl_file.c.

Referenced by pru_sample().

◆ rl_file_add_data_block()

int rl_file_add_data_block	(	FILE *	data_file,
		int32_t const *	analog_buffer,
		uint32_t const *	digital_buffer,
		size_t	buffer_size,
		rl_timestamp_t const *const	timestamp_realtime,
		rl_timestamp_t const *const	timestamp_monotonic,
		rl_config_t const *const	config
	)

Handle the sampling data buffer to add a new block to the data file.

Parameters

data_file	Data file to write to
analog_buffer	Analog data buffer to process
digital_buffer	Digital data buffer to process
buffer_size	Number of data samples in the buffer
timestamp_realtime	Timestamp sampled from realtime clock
timestamp_monotonic	Timestamp sampled from monotonic clock
config	Current measurement configuration

Returns: Returns the number of data blocks written to the file, negative on failure with errno set accordingly

Definition at line 351 of file rl_file.c.

References rl_config::aggregation_mode, rl_config::channel_enable, data, rl_config::digital_enable, ERROR, rl_config::file_enable, rl_config::file_format, rl_timestamp::nsec, PRU_DIGITAL_I1L_VALID_MASK, PRU_DIGITAL_I2L_VALID_MASK, PRU_DIGITAL_INPUT1_MASK, PRU_DIGITAL_INPUT_MASK, RL_AGGREGATION_MODE_AVERAGE, RL_AGGREGATION_MODE_DOWNSAMPLE, RL_CHANNEL_COUNT, RL_CHANNEL_DIGITAL_COUNT, RL_CONFIG_CHANNEL_I1L, RL_CONFIG_CHANNEL_I2L, RL_FILE_CSV_DELIMITER, RL_FILE_FORMAT_CSV, RL_FILE_FORMAT_RLD, rl_log(), RL_LOG_ERROR, RL_LOG_WARNING, RL_SAMPLE_RATE_MIN, rl_config::sample_rate, and rl_timestamp::sec.

Referenced by pru_sample().

Here is the call graph for this function:

◆ rl_file_get_ambient_file_name()

char * rl_file_get_ambient_file_name ( char const *const data_file_name )

Derive the ambient file name from the data file name.

Parameters

data_file_name The data file name

Returns: Pointer to the buffer of the derived ambient file name

Definition at line 95 of file rl_file.c.

References RL_FILE_AMBIENT_SUFFIX.

Referenced by hw_sample(), and pru_sample().

◆ rl_file_setup_ambient_channels()

void rl_file_setup_ambient_channels ( rl_file_header_t *const header )

Set up channel information of the ambient file header.

Parameters

header	The ambient file header structure to configure
config	Current measurement configuration

Definition at line 625 of file rl_file.c.

References rl_file_header::channel, rl_file_lead_in::channel_bin_count, rl_file_lead_in::channel_count, rl_file_channel::channel_scale, rl_file_channel::data_size, rl_file_header::lead_in, rl_file_channel::name, rl_sensor::name, RL_FILE_CHANNEL_NO_LINK, rl_sensor::scale, rl_status::sensor_available, SENSOR_REGISTRY, SENSOR_REGISTRY_SIZE, rl_file_channel::unit, rl_sensor::unit, and rl_file_channel::valid_data_channel.

Referenced by rl_file_setup_ambient_header().

◆ rl_file_setup_ambient_header()

void rl_file_setup_ambient_header	(	rl_file_header_t *const	file_header,
		rl_config_t const *const	config
	)

Set up ambient file header with current configuration.

Parameters

file_header	The file header data structure to set up
config	Current measurement configuration

Definition at line 207 of file rl_file.c.

References rl_file_header::comment, rl_config::file_comment, and rl_file_setup_ambient_channels().

Referenced by pru_sample().

Here is the call graph for this function:

◆ rl_file_setup_ambient_lead_in()

void rl_file_setup_ambient_lead_in	(	rl_file_lead_in_t *const	lead_in,
		rl_config_t const *const	config
	)

Set up ambient file header lead-in with current configuration.

Parameters

lead_in	The file lead-in data structure to set up
config	Current measurement configuration

Definition at line 161 of file rl_file.c.

References rl_file_lead_in::channel_bin_count, rl_file_lead_in::channel_count, rl_file_lead_in::comment_length, create_time_stamp(), rl_file_lead_in::data_block_count, rl_file_lead_in::data_block_size, rl_file_lead_in::file_magic, rl_file_lead_in::file_version, get_mac_addr(), rl_file_lead_in::header_length, rl_file_lead_in::mac_address, RL_FILE_AMBIENT_DATA_BLOCK_SIZE, RL_FILE_COMMENT_ALIGNMENT_BYTES, RL_FILE_MAGIC, RL_FILE_VERSION, RL_SENSOR_SAMPLE_RATE, rl_file_lead_in::sample_count, rl_file_lead_in::sample_rate, rl_status::sensor_count, rl_file_lead_in::start_time, and rl_config::update_rate.

Referenced by pru_sample().

Here is the call graph for this function:

◆ rl_file_setup_data_channels()

void rl_file_setup_data_channels	(	rl_file_header_t *const	header,
		rl_config_t const *const	config
	)

Set up channel information of the data file header.

Parameters

header	The file header structure to configure
config	Current measurement configuration

Definition at line 539 of file rl_file.c.

References rl_config::calibration_ignore, rl_file_header::channel, rl_file_lead_in::channel_bin_count, rl_file_lead_in::channel_count, rl_config::channel_enable, rl_file_channel::channel_scale, rl_file_channel::data_size, rl_config::digital_enable, i1l_valid_channel, i2l_valid_channel, is_current(), is_low_current(), is_voltage(), rl_file_header::lead_in, rl_file_channel::name, RL_CHANNEL_COUNT, RL_CHANNEL_DIGITAL_COUNT, RL_CHANNEL_DIGITAL_NAMES, RL_CHANNEL_NAMES, RL_CHANNEL_VALID_NAMES, RL_CONFIG_CHANNEL_I1L, RL_CONFIG_CHANNEL_I2L, RL_FILE_CHANNEL_NAME_LENGTH, RL_FILE_CHANNEL_NO_LINK, RL_SCALE_NANO, RL_SCALE_TEN_NANO, RL_SCALE_TEN_PICO, RL_SCALE_UNIT, RL_UNIT_AMPERE, RL_UNIT_BINARY, RL_UNIT_RANGE_VALID, RL_UNIT_SECOND, RL_UNIT_UNDEFINED, RL_UNIT_VOLT, rl_file_channel::unit, and rl_file_channel::valid_data_channel.

Referenced by rl_file_setup_data_header().

Here is the call graph for this function:

◆ rl_file_setup_data_header()

void rl_file_setup_data_header	(	rl_file_header_t *const	file_header,
		rl_config_t const *const	config
	)

Set up data file header with current configuration.

Parameters

file_header	The file header data structure to set up
config	Current measurement configuration

Definition at line 196 of file rl_file.c.

References rl_file_header::comment, rl_config::file_comment, and rl_file_setup_data_channels().

Referenced by pru_sample().

Here is the call graph for this function:

◆ rl_file_setup_data_lead_in()

void rl_file_setup_data_lead_in	(	rl_file_lead_in_t *const	lead_in,
		rl_config_t const *const	config
	)

Set up data file header lead-in with current configuration.

Parameters

lead_in	The file lead-in data structure to set up
config	Current measurement configuration

Definition at line 119 of file rl_file.c.

References rl_file_lead_in::channel_bin_count, rl_file_lead_in::channel_count, rl_config::channel_enable, rl_file_lead_in::comment_length, count_channels(), create_time_stamp(), rl_file_lead_in::data_block_count, rl_file_lead_in::data_block_size, rl_config::digital_enable, rl_file_lead_in::file_magic, rl_file_lead_in::file_version, get_mac_addr(), rl_file_lead_in::header_length, i1l_valid_channel, i2l_valid_channel, rl_file_lead_in::mac_address, RL_CHANNEL_DIGITAL_COUNT, RL_CONFIG_CHANNEL_I1L, RL_CONFIG_CHANNEL_I2L, RL_FILE_COMMENT_ALIGNMENT_BYTES, RL_FILE_MAGIC, RL_FILE_VERSION, rl_file_lead_in::sample_count, rl_config::sample_rate, rl_file_lead_in::sample_rate, rl_file_lead_in::start_time, and rl_config::update_rate.

Referenced by pru_sample().

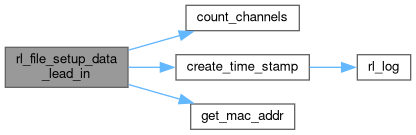

Here is the call graph for this function:

◆ rl_file_store_header_bin()

void rl_file_store_header_bin	(	FILE *	file_handle,
		rl_file_header_t *const	file_header
	)

Store file header to file (in binary format).

Parameters

file_handle	Data file to write to
file_header	The file header data structure to store to the file

Definition at line 218 of file rl_file.c.

References rl_file_header::channel, rl_file_lead_in::channel_bin_count, rl_file_lead_in::channel_count, rl_file_header::comment, rl_file_lead_in::comment_length, rl_file_lead_in::header_length, rl_file_header::lead_in, and RL_FILE_COMMENT_ALIGNMENT_BYTES.

Referenced by pru_sample().

◆ rl_file_store_header_csv()

void rl_file_store_header_csv	(	FILE *	file_handle,
		rl_file_header_t const *const	file_header
	)

Store file header to file (in CSV format).

Parameters

file_handle	Data file to write to
file_header	The file header data structure to store to the file

Definition at line 255 of file rl_file.c.

References rl_file_header::channel, rl_file_lead_in::channel_bin_count, rl_file_lead_in::channel_count, rl_file_channel::channel_scale, rl_file_header::comment, rl_file_lead_in::data_block_count, rl_file_lead_in::data_block_size, rl_file_lead_in::file_version, rl_file_header::lead_in, rl_file_lead_in::mac_address, MAC_ADDRESS_LENGTH, rl_file_channel::name, RL_SCALE_MICRO, RL_SCALE_MILLI, RL_SCALE_NANO, RL_SCALE_TEN_NANO, RL_SCALE_TEN_PICO, RL_UNIT_AMPERE, RL_UNIT_SECOND, RL_UNIT_VOLT, rl_file_lead_in::sample_count, rl_file_lead_in::sample_rate, rl_timestamp::sec, rl_file_lead_in::start_time, and rl_file_channel::unit.

Referenced by pru_sample().

◆ rl_file_update_header_bin()

void rl_file_update_header_bin	(	FILE *	file_handle,
		rl_file_header_t const *const	file_header
	)

Update file with new header lead-in (to write current sample count) in binary format.

Parameters

file_handle	Data file to write to
file_header	The file header data structure to store to the file

Definition at line 325 of file rl_file.c.

References rl_file_header::lead_in.

Referenced by pru_sample().

◆ rl_file_update_header_csv()

void rl_file_update_header_csv	(	FILE *	file_handle,
		rl_file_header_t const *const	file_header
	)

Update file with new header lead-in (to write current sample count) in CSV format.

Parameters

file_handle	Data file to write to
file_header	The file header data structure to store to the file

Definition at line 335 of file rl_file.c.

References rl_file_lead_in::data_block_count, rl_file_lead_in::data_block_size, rl_file_lead_in::file_version, rl_file_header::lead_in, and rl_file_lead_in::sample_count.

Referenced by pru_sample().

◆ rl_unit_to_string()

char * rl_unit_to_string ( rl_unit_t unit )

Get the string representing the unit.

Parameters

unit	The unit to convert into a string

Returns: Pointer to the unit string or NULL if unit not defined

Definition at line 86 of file rl_file.c.

References RL_UNIT_NAMES.

Referenced by rl_socket_metadata().

Variable Documentation

◆ i1l_valid_channel

int i1l_valid_channel = 0

Global variable to determine i1l valid channel index.

Definition at line 82 of file rl_file.c.

Referenced by rl_file_setup_data_channels(), and rl_file_setup_data_lead_in().

◆ i2l_valid_channel

int i2l_valid_channel = 0

Global variable to determine i2l valid channel index.

Definition at line 84 of file rl_file.c.

Referenced by rl_file_setup_data_channels(), and rl_file_setup_data_lead_in().

◆ RL_UNIT_NAMES

char* RL_UNIT_NAMES[]

Initial value:

= {
    "",
    "V",
    "A",
    "",
    "",
    "lx",
    "C",
    "",
    "%",
    "P",
    "s",
}

Definition at line 50 of file rl_file.c.

Referenced by rl_unit_to_string().
