#include <errno.h>
#include <fcntl.h>
#include <stdio.h>
#include <stdlib.h>
#include <string.h>
#include <sys/mman.h>
#include <sys/stat.h>
#include <unistd.h>
#include "rl_lib.h"
#include "types.h"

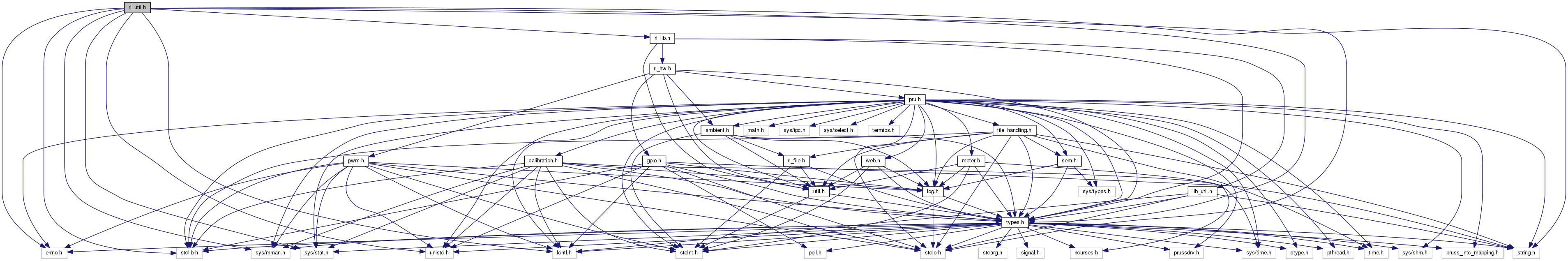

Include dependency graph for rl_util.h:

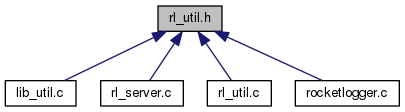

This graph shows which files directly or indirectly include this file:

Go to the source code of this file.

Macros
#define	DEFAULT_CONFIG "/etc/rocketlogger/default.conf"
	Default configuration file. More...

Typedefs
typedef enum option	rl_option

Enumerations
enum	option { FILE_NAME, SAMPLE_RATE, UPDATE_RATE, CHANNEL, FHR, WEB, DIGITAL_INPUTS, AMBIENT, AGGREGATION, DEF_CONF, CALIBRATION, FILE_FORMAT, FILE_SIZE, COMMENT, NO_OPTION }

Functions
void	rl_print_config (struct rl_conf *conf)

void	rl_print_status (struct rl_status *status)

void	rl_print_version (void)

rl_mode	get_mode (char *mode)

rl_option	get_option (char *option)

int	parse_args (int argc, char argv[], struct rl_conf conf, int set_as_default, char *file_comment)

void	print_usage (void)

void	print_config (struct rl_conf *conf)

void	reset_config (struct rl_conf *conf)

int	read_default_config (struct rl_conf *conf)

int	write_default_config (struct rl_conf *conf)

Macro Definition Documentation

#define DEFAULT_CONFIG "/etc/rocketlogger/default.conf"

Default configuration file.

Redistribution and use in source and binary forms, with or without modification, are permitted provided that the following conditions are met:

Redistributions of source code must retain the above copyright notice, this list of conditions and the following disclaimer.
Redistributions in binary form must reproduce the above copyright notice, this list of conditions and the following disclaimer in the documentation and/or other materials provided with the distribution.
Neither the name of the copyright holder nor the names of its contributors may be used to endorse or promote products derived from this software without specific prior written permission.

THIS SOFTWARE IS PROVIDED BY THE COPYRIGHT HOLDERS AND CONTRIBUTORS "AS IS" AND ANY EXPRESS OR IMPLIED WARRANTIES, INCLUDING, BUT NOT LIMITED TO, THE IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE ARE DISCLAIMED. IN NO EVENT SHALL THE COPYRIGHT HOLDER OR CONTRIBUTORS BE LIABLE FOR ANY DIRECT, INDIRECT, INCIDENTAL, SPECIAL, EXEMPLARY, OR CONSEQUENTIAL DAMAGES (INCLUDING, BUT NOT LIMITED TO, PROCUREMENT OF SUBSTITUTE GOODS OR SERVICES; LOSS OF USE, DATA, OR PROFITS; OR BUSINESS INTERRUPTION) HOWEVER CAUSED AND ON ANY THEORY OF LIABILITY, WHETHER IN CONTRACT, STRICT LIABILITY, OR TORT (INCLUDING NEGLIGENCE OR OTHERWISE) ARISING IN ANY WAY OUT OF THE USE OF THIS SOFTWARE, EVEN IF ADVISED OF THE POSSIBILITY OF SUCH DAMAGE.

Definition at line 48 of file rl_util.h.

Referenced by read_default_config(), and write_default_config().

Typedef Documentation

typedef enum option rl_option

Available options for RocketLogger CLI

Enumeration Type Documentation

enum option

Available options for RocketLogger CLI

Enumerator
FILE_NAME	Name of data file to write.
SAMPLE_RATE	Sampling rate.
UPDATE_RATE	Data file update rate.
CHANNEL	Channels to sample.
FHR	Channels to force to high range.
WEB	En-/disable data averaging for web server.
DIGITAL_INPUTS	Sample digital inputs.
AMBIENT	Ambient sensor logging.
AGGREGATION	Sample aggregation.
DEF_CONF	Set configuration as default.
CALIBRATION	Use/ignore existing calibration values.
FILE_FORMAT	File format.
FILE_SIZE	Maximum data file size.
COMMENT	File comment.
NO_OPTION	No option.

Definition at line 53 of file rl_util.h.

Function Documentation

rl_mode get_mode ( char * mode )

Get RocketLogger mode of provided command line argument

Parameters

mode	Pointer to argument string to parse

Returns: provided mode

Definition at line 136 of file rl_util.c.

References CONTINUOUS, HELP, LIMIT, METER, NO_MODE, PRINT_DEFAULT, PRINT_VERSION, SET_DEFAULT, STATUS, and STOPPED.

Referenced by parse_args().

rl_option get_option ( char * option )

Get RocketLogger option of provided command line argument

Parameters

option Pointer to argument string to parse

Returns: provided option

Definition at line 166 of file rl_util.c.

References AGGREGATION, AMBIENT, CALIBRATION, CHANNEL, COMMENT, DEF_CONF, DIGITAL_INPUTS, FHR, FILE_FORMAT, FILE_NAME, FILE_SIZE, NO_OPTION, SAMPLE_RATE, UPDATE_RATE, and WEB.

Referenced by parse_args().

int parse_args	(	int	argc,
		char *	argv[],
		struct rl_conf *	conf,
		int *	set_as_default,
		char **	file_comment
	)

Parse input arguments of RocketLogger CLI

Parameters

argc	Number of input arguments
argv	Input argument string
conf	Pointer to rl_conf configuration to write
set_as_default	Is set to 1, if configuration should be set as default
file_comment	Comment to write into the file header

Returns: SUCCESS on success, FAILURE otherwise

Definition at line 252 of file rl_util.c.

References AGGREGATE_AVERAGE, AGGREGATE_DOWNSAMPLE, AGGREGATE_NONE, AGGREGATION, rl_conf::aggregation, AMBIENT, rl_conf::ambient, AMBIENT_DISABLED, AMBIENT_ENABLED, ambient_set_file_name(), BIN, CAL_IGNORE, CAL_USE, CALIBRATION, rl_conf::calibration, CHANNEL, CHANNEL_ENABLED, rl_conf::channels, check_sample_rate(), check_update_rate(), COMMENT, CSV, DEF_CONF, DIGITAL_INPUTS, rl_conf::digital_inputs, DIGITAL_INPUTS_DISABLED, DIGITAL_INPUTS_ENABLED, rl_conf::enable_web_server, rl_ambient::enabled, ERROR, FAILURE, FHR, FILE_FORMAT, rl_conf::file_format, FILE_NAME, rl_conf::file_name, FILE_SIZE, rl_conf::force_high_channels, get_mode(), get_option(), HELP, INFO, KSPS, LIMIT, rl_conf::max_file_size, MAX_PATH_LENGTH, rl_conf::mode, NO_FILE, NO_MODE, NO_OPTION, parse_channels(), PRINT_DEFAULT, reset_config(), rl_log(), rl_conf::sample_limit, SAMPLE_RATE, rl_conf::sample_rate, SET_DEFAULT, STATUS, STOPPED, SUCCESS, UPDATE_RATE, rl_conf::update_rate, and WEB.

Referenced by main().

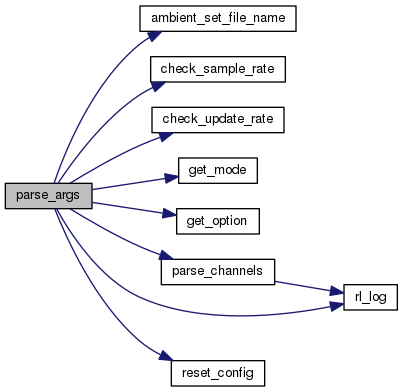

Here is the call graph for this function:

void print_config ( struct rl_conf * conf )

Print provided configuration to command line

Parameters

conf	Pointer to rl_conf configuration

Definition at line 643 of file rl_util.c.

References rl_print_config().

Referenced by main().

Here is the call graph for this function:

void print_usage ( void )

Print help for RocketLogger CLI on command line

Definition at line 568 of file rl_util.c.

Referenced by main().

int read_default_config ( struct rl_conf * conf )

Read default configuration from file

Parameters

conf	Pointer to rl_conf configuration

Returns: SUCCESS on success, FAILURE otherwise

Definition at line 683 of file rl_util.c.

References CONTINUOUS, DEFAULT_CONFIG, ERROR, FAILURE, rl_conf::mode, reset_config(), RL_CONF_VERSION, rl_log(), SUCCESS, UNDEFINED, rl_conf::version, and WARNING.

Referenced by main(), and print_status().

Here is the call graph for this function:

void reset_config ( struct rl_conf * conf )

Reset configuration to standard values

Parameters

conf	Pointer to rl_conf configuration

Definition at line 653 of file rl_util.c.

References AGGREGATE_DOWNSAMPLE, rl_conf::aggregation, rl_conf::ambient, AMBIENT_DISABLED, BIN, CAL_USE, rl_conf::calibration, CHANNEL_ENABLED, rl_conf::channels, CONTINUOUS, rl_conf::digital_inputs, DIGITAL_INPUTS_ENABLED, rl_conf::enable_web_server, rl_ambient::enabled, rl_conf::file_format, rl_ambient::file_name, rl_conf::file_name, rl_conf::force_high_channels, rl_conf::max_file_size, rl_conf::mode, NUM_CHANNELS, RL_CONF_VERSION, rl_conf::sample_limit, rl_conf::sample_rate, rl_conf::update_rate, and rl_conf::version.

Referenced by parse_args(), and read_default_config().

void rl_print_config ( struct rl_conf * conf )

Redistribution and use in source and binary forms, with or without modification, are permitted provided that the following conditions are met:

Redistributions of source code must retain the above copyright notice, this list of conditions and the following disclaimer.
Redistributions in binary form must reproduce the above copyright notice, this list of conditions and the following disclaimer in the documentation and/or other materials provided with the distribution.
Neither the name of the copyright holder nor the names of its contributors may be used to endorse or promote products derived from this software without specific prior written permission.

THIS SOFTWARE IS PROVIDED BY THE COPYRIGHT HOLDERS AND CONTRIBUTORS "AS IS" AND ANY EXPRESS OR IMPLIED WARRANTIES, INCLUDING, BUT NOT LIMITED TO, THE IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE ARE DISCLAIMED. IN NO EVENT SHALL THE COPYRIGHT HOLDER OR CONTRIBUTORS BE LIABLE FOR ANY DIRECT, INDIRECT, INCIDENTAL, SPECIAL, EXEMPLARY, OR CONSEQUENTIAL DAMAGES (INCLUDING, BUT NOT LIMITED TO, PROCUREMENT OF SUBSTITUTE GOODS OR SERVICES; LOSS OF USE, DATA, OR PROFITS; OR BUSINESS INTERRUPTION) HOWEVER CAUSED AND ON ANY THEORY OF LIABILITY, WHETHER IN CONTRACT, STRICT LIABILITY, OR TORT (INCLUDING NEGLIGENCE OR OTHERWISE) ARISING IN ANY WAY OUT OF THE USE OF THIS SOFTWARE, EVEN IF ADVISED OF THE POSSIBILITY OF SUCH DAMAGE. Print RocketLogger configuration on command line

Parameters
