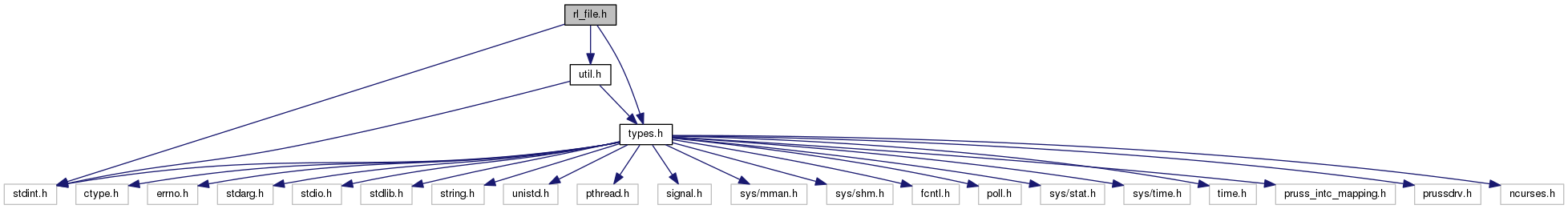

Include dependency graph for rl_file.h:

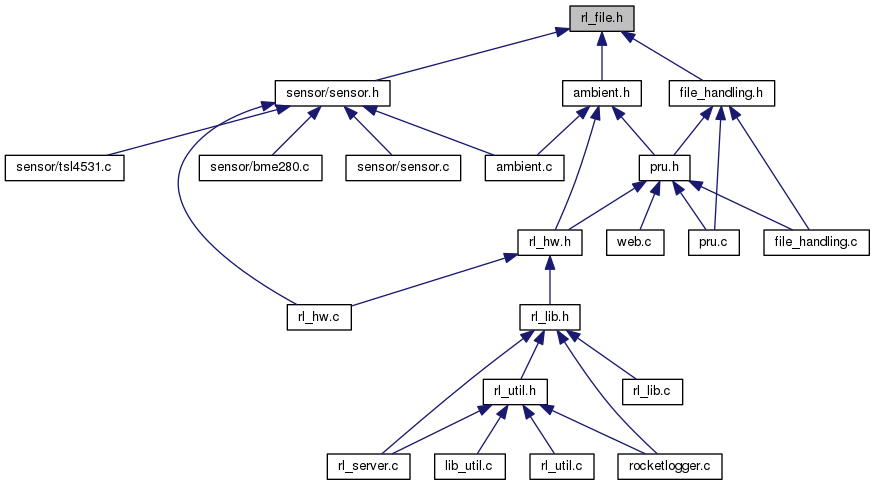

This graph shows which files directly or indirectly include this file:
Go to the source code of this file.
Data Structures | |
| struct | rl_file_lead_in |
| struct | rl_file_channel |
| struct | rl_file_header |
Macros | |
| #define | RL_SCALE_PICO -12 |
| #define | RL_SCALE_TEN_PICO -11 |
| #define | RL_SCALE_NANO -9 |
| #define | RL_SCALE_TEN_NANO -8 |
| #define | RL_SCALE_MICRO -6 |
| #define | RL_SCALE_MILLI -3 |
| #define | RL_SCALE_NONE 0 |
| #define | RL_SCALE_KILO 3 |
| #define | RL_SCALE_MEGA 6 |
| #define | RL_SCALE_GIGA 9 |
| #define | RL_SCALE_TERA 12 |
| #define | RL_FILE_MAGIC 0x444C5225 |
| File header magic number (ascii RLD) More... | |
| #define | RL_FILE_VERSION 0x03 |
| File format version of current implementation. More... | |
| #define | RL_FILE_CHANNEL_NAME_LENGTH 16 |
| Maximum channel description length. More... | |
| #define | NO_VALID_DATA 0xFFFF |
| No additional range valid information available. More... | |
| #define | RL_FILE_COMMENT "This is a comment" |
| Comment for file header. More... | |
| #define | RL_FILE_COMMENT_ALIGNMENT_BYTES sizeof(uint32_t) |
| Comment alignment in bytes. More... | |
Typedefs | |
| typedef enum unit | rl_unit |
Enumerations | |
| enum | unit { RL_UNIT_UNITLESS = 0, RL_UNIT_VOLT = 1, RL_UNIT_AMPERE = 2, RL_UNIT_BINARY = 3, RL_UNIT_RANGE_VALID = 4, RL_UNIT_LUX = 5, RL_UNIT_DEG_C = 6, RL_UNIT_INTEGER = 7, RL_UNIT_PERCENT = 8, RL_UNIT_PASCAL = 9, RL_UNIT_UNDEFINED = 0xffffffff } |
Macro Definition Documentation
| #define NO_VALID_DATA 0xFFFF |
No additional range valid information available.
Definition at line 70 of file rl_file.h.
Referenced by ambient_setup_channels(), and file_setup_channels().
| #define RL_FILE_CHANNEL_NAME_LENGTH 16 |
| #define RL_FILE_COMMENT "This is a comment" |
| #define RL_FILE_COMMENT_ALIGNMENT_BYTES sizeof(uint32_t) |
Comment alignment in bytes.
Definition at line 76 of file rl_file.h.
Referenced by ambient_setup_lead_in(), file_setup_lead_in(), and file_store_header_bin().
| #define RL_FILE_MAGIC 0x444C5225 |
File header magic number (ascii RLD)
Definition at line 60 of file rl_file.h.
Referenced by ambient_setup_lead_in(), and file_setup_lead_in().
| #define RL_FILE_VERSION 0x03 |
File format version of current implementation.
Definition at line 63 of file rl_file.h.
Referenced by ambient_setup_lead_in(), and file_setup_lead_in().
| #define RL_SCALE_MICRO -6 |
Definition at line 49 of file rl_file.h.
Referenced by file_store_header_csv().
| #define RL_SCALE_MILLI -3 |
Definition at line 50 of file rl_file.h.
Referenced by file_store_header_csv().
| #define RL_SCALE_NANO -9 |
Definition at line 47 of file rl_file.h.
Referenced by file_setup_channels(), and file_store_header_csv().
| #define RL_SCALE_NONE 0 |
Definition at line 51 of file rl_file.h.
Referenced by file_setup_channels().
| #define RL_SCALE_PICO -12 |
Copyright (c) 2016-2019, Swiss Federal Institute of Technology (ETH Zurich) All rights reserved.
Redistribution and use in source and binary forms, with or without modification, are permitted provided that the following conditions are met:
- Redistributions of source code must retain the above copyright notice, this list of conditions and the following disclaimer.
- Redistributions in binary form must reproduce the above copyright notice, this list of conditions and the following disclaimer in the documentation and/or other materials provided with the distribution.
- Neither the name of the copyright holder nor the names of its contributors may be used to endorse or promote products derived from this software without specific prior written permission.
THIS SOFTWARE IS PROVIDED BY THE COPYRIGHT HOLDERS AND CONTRIBUTORS "AS IS" AND ANY EXPRESS OR IMPLIED WARRANTIES, INCLUDING, BUT NOT LIMITED TO, THE IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE ARE DISCLAIMED. IN NO EVENT SHALL THE COPYRIGHT HOLDER OR CONTRIBUTORS BE LIABLE FOR ANY DIRECT, INDIRECT, INCIDENTAL, SPECIAL, EXEMPLARY, OR CONSEQUENTIAL DAMAGES (INCLUDING, BUT NOT LIMITED TO, PROCUREMENT OF SUBSTITUTE GOODS OR SERVICES; LOSS OF USE, DATA, OR PROFITS; OR BUSINESS INTERRUPTION) HOWEVER CAUSED AND ON ANY THEORY OF LIABILITY, WHETHER IN CONTRACT, STRICT LIABILITY, OR TORT (INCLUDING NEGLIGENCE OR OTHERWISE) ARISING IN ANY WAY OUT OF THE USE OF THIS SOFTWARE, EVEN IF ADVISED OF THE POSSIBILITY OF SUCH DAMAGE. Channel scaling definitions
| #define RL_SCALE_TEN_NANO -8 |
Definition at line 48 of file rl_file.h.
Referenced by file_setup_channels(), and file_store_header_csv().
| #define RL_SCALE_TEN_PICO -11 |
Definition at line 46 of file rl_file.h.
Referenced by file_setup_channels(), and file_store_header_csv().
Typedef Documentation
Enumeration Type Documentation
| enum unit |
Data unit definition
