#include <stdint.h>
#include <sys/ipc.h>
#include <sys/sem.h>
#include <sys/types.h>
#include "file_handling.h"
#include "util.h"
#include "web.h"
#include "pru.h"

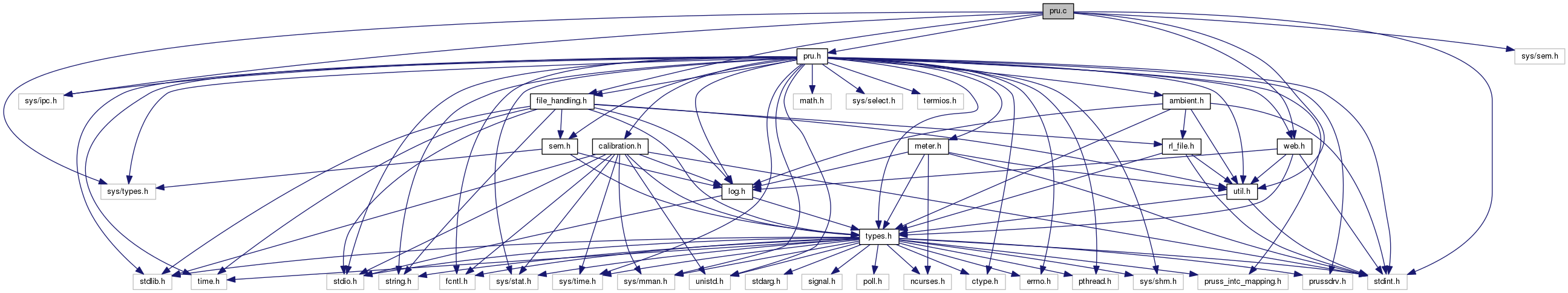

Include dependency graph for pru.c:

Functions
void *	pru_wait_event (void *voidEvent)

int	pru_wait_event_timeout (unsigned int event, unsigned int timeout)

void *	pru_map_memory (void)

int	pru_unmap_memory (void *pru_mmap)

void	pru_set_state (rl_pru_state state)

int	pru_init (void)

int	pru_data_setup (struct pru_data_struct pru, struct rl_conf conf, uint32_t avg_factor)

int	pru_sample (FILE data_file, FILE ambient_file, struct rl_conf conf, char file_comment)

void	pru_stop (void)

void	pru_close (void)

Variables
pthread_mutex_t	waiting = PTHREAD_MUTEX_INITIALIZER
	PRU access mutex. More...

pthread_cond_t	done = PTHREAD_COND_INITIALIZER
	Notification variable. More...

Function Documentation

void pru_close ( void )

Disable PRU

Definition at line 725 of file pru.c.

Referenced by hw_close().

int pru_data_setup	(	struct pru_data_struct *	pru,
		struct rl_conf *	conf,
		uint32_t	avg_factor
	)

PRU data struct setup

Parameters

pru	Pointer to pru_data_struct to setup
conf	Pointer to current rl_conf configuration
avg_factor	Average factor for sampling rates smaller than minimal ADC rate

Returns: SUCCESS on success, FAILURE otherwise

Definition at line 189 of file pru.c.

References pru_data_struct::buffer0_location, pru_data_struct::buffer1_location, pru_data_struct::buffer_size, CH1SET, CH2SET, CH3SET, CH4SET, CH5SET, CH6SET, CH7SET, pru_data_struct::commands, CONFIG1, CONFIG1DEFAULT, CONFIG3, CONFIG3DEFAULT, ERROR, FAILURE, GAIN1, GAIN2, K1, K16, K2, K32, K4, K64, K8, LIMIT, MMAP_FILE, rl_conf::mode, NUM_CHANNELS, NUMBER_ADC_COMMANDS, pru_data_struct::number_commands, pru_data_struct::precision, PRECISION_HIGH, PRECISION_LOW, PRU_BUFFER_STATUS_SIZE, PRU_CONTINUOUS, PRU_DIG_SIZE, PRU_LIMIT, RDATAC, read_file_value(), RESET, rl_log(), pru_data_struct::sample_limit, rl_conf::sample_limit, rl_conf::sample_rate, pru_data_struct::sample_size, SDATAC, SIZE_HIGH, pru_data_struct::state, SUCCESS, rl_conf::update_rate, and WREG.

Referenced by pru_sample().

Here is the call graph for this function:

int pru_init ( void )

PRU initiation

Returns: SUCCESS on success, FAILURE otherwise

Definition at line 167 of file pru.c.

References ERROR, FAILURE, rl_log(), and SUCCESS.

Referenced by hw_init().

Here is the call graph for this function:

void* pru_map_memory ( void )

Map PRU memory into user space

Definition at line 106 of file pru.c.

References ERROR, MMAP_FILE, read_file_value(), and rl_log().

Referenced by pru_sample().

Here is the call graph for this function:

int pru_sample	(	FILE *	data_file,
		FILE *	ambient_file,
		struct rl_conf *	conf,
		char *	file_comment
	)

Main PRU sampling function

Parameters

data_file	File pointer to data file
ambient_file	File pointer to ambient file
conf	Pointer to current rl_conf configuration
file_comment	Comment to store in the file header

Returns: SUCCESS on success, FAILURE otherwise

Definition at line 296 of file pru.c.

References rl_conf::ambient, AMBIENT_DATA_BLOCK_SIZE, AMBIENT_ENABLED, ambient_setup_header(), ambient_setup_lead_in(), ambient_store_data(), BIN, web_shm::buffer, BUFFER100_SIZE, BUFFER10_SIZE, BUFFER1_SIZE, rl_status::buffer_number, pru_data_struct::buffer_size, buffer_sizes, ceil_div(), rl_file_header::channel, rl_file_lead_in::channel_bin_count, rl_file_lead_in::channel_count, CHANNEL_ENABLED, rl_conf::channels, count_channels(), create_sem(), create_time_stamp(), CSV, rl_file_lead_in::data_block_count, DATA_SEM, rl_conf::digital_inputs, DIGITAL_INPUTS_ENABLED, rl_conf::enable_web_server, rl_ambient::enabled, ERROR, FAILURE, rl_conf::file_format, file_handle_data(), rl_ambient::file_name, rl_conf::file_name, file_setup_header(), file_setup_lead_in(), file_store_header_bin(), file_store_header_csv(), file_update_header_bin(), file_update_header_csv(), I1H_INDEX, I1L_INDEX, I2H_INDEX, I2L_INDEX, INFO, rl_file_header::lead_in, LIMIT, rl_conf::max_file_size, MAX_PATH_LENGTH, METER, meter_init(), meter_print_buffer(), meter_stop(), MIN_ADC_RATE, MMAP_FILE, rl_conf::mode, NO_FILE, time_stamp::nsec, web_shm::num_channels, NUM_CHANNELS, NUM_DIGITAL_INPUTS, NUM_SEMS, NUM_WEB_POINTS, PRU_BUFFER_STATUS_SIZE, PRU_CODE, pru_data_setup(), PRU_DIG_SIZE, pru_map_memory(), PRU_OFF, PRU_TIMEOUT, pru_unmap_memory(), pru_wait_event_timeout(), read_file_value(), remove_sem(), RL_ERROR, rl_log(), RL_RUNNING, rl_file_lead_in::sample_count, pru_data_struct::sample_limit, rl_conf::sample_limit, rl_conf::sample_rate, pru_data_struct::sample_size, rl_status::samples_taken, rl_status::sampling, SAMPLING_ON, time_stamp::sec, sem_id, SEM_KEY, rl_ambient::sensor_count, set_sem(), pru_data_struct::state, rl_status::state, status, SUCCESS, rl_conf::update_rate, WAIT_SEM, WARNING, web_buffer_reset(), web_create_shm(), web_data, web_handle_data(), WEB_RING_BUFFER_COUNT, and write_status().

Referenced by hw_sample().

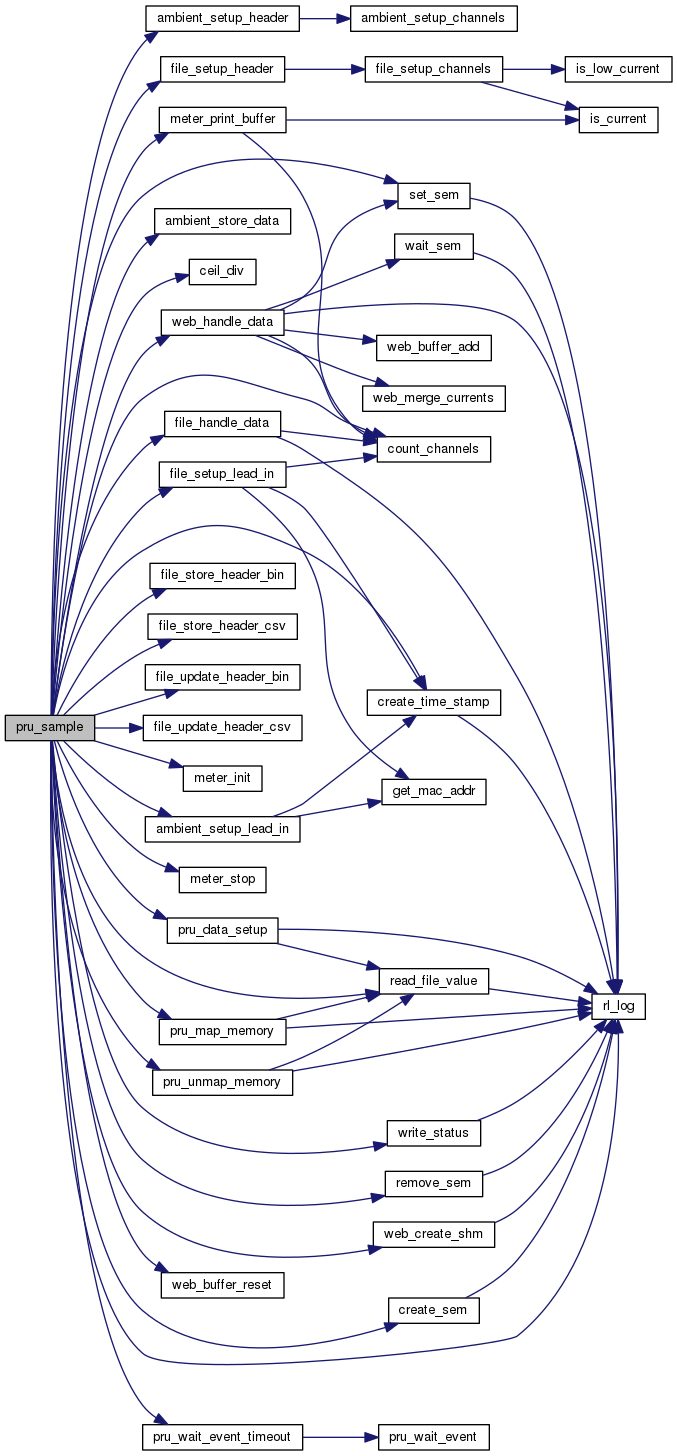

Here is the call graph for this function:

void pru_set_state ( rl_pru_state state )

Write state to PRU

Parameters

state PRU state to write

Definition at line 157 of file pru.c.

Referenced by pru_stop().

void pru_stop ( void )

Stop and shut down PRU operation.

Note: When sampling in continuous mode, this has to be called before pru_close.

Definition at line 710 of file pru.c.

References PRU_OFF, pru_set_state(), PRU_TIMEOUT, pru_wait_event_timeout(), RL_ERROR, rl_status::state, and status.

Referenced by hw_close().

Here is the call graph for this function:

int pru_unmap_memory ( void * pru_mmap )

Unmap PRU memory from user space

Parameters

pru_mmap Pointer to mapped memory

Returns: SUCCESS on success, FAILURE otherwise

Definition at line 138 of file pru.c.

References ERROR, FAILURE, MMAP_FILE, read_file_value(), rl_log(), and SUCCESS.

Referenced by pru_sample().

Here is the call graph for this function:

void* pru_wait_event ( void * voidEvent )

Wait on PRU event

Parameters

voidEvent PRU event to wait on

Definition at line 56 of file pru.c.

References done.

Referenced by pru_wait_event_timeout().

int pru_wait_event_timeout	(	unsigned int	event,
		unsigned int	timeout
	)

Wrapper for PRU event waiting with time out

Parameters

event	PRU event to wait on
timeout	Time out in seconds

Returns: error code of pthread timedwait function

Definition at line 79 of file pru.c.

References done, pru_wait_event(), and waiting.

Referenced by pru_sample(), and pru_stop().

Here is the call graph for this function:

Variable Documentation

pthread_cond_t done = PTHREAD_COND_INITIALIZER

Notification variable.

Definition at line 50 of file pru.c.

Referenced by pru_wait_event(), and pru_wait_event_timeout().

pthread_mutex_t waiting = PTHREAD_MUTEX_INITIALIZER

PRU access mutex.

Redistribution and use in source and binary forms, with or without modification, are permitted provided that the following conditions are met:

Redistributions of source code must retain the above copyright notice, this list of conditions and the following disclaimer.
Redistributions in binary form must reproduce the above copyright notice, this list of conditions and the following disclaimer in the documentation and/or other materials provided with the distribution.
Neither the name of the copyright holder nor the names of its contributors may be used to endorse or promote products derived from this software without specific prior written permission.

THIS SOFTWARE IS PROVIDED BY THE COPYRIGHT HOLDERS AND CONTRIBUTORS "AS IS" AND ANY EXPRESS OR IMPLIED WARRANTIES, INCLUDING, BUT NOT LIMITED TO, THE IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE ARE DISCLAIMED. IN NO EVENT SHALL THE COPYRIGHT HOLDER OR CONTRIBUTORS BE LIABLE FOR ANY DIRECT, INDIRECT, INCIDENTAL, SPECIAL, EXEMPLARY, OR CONSEQUENTIAL DAMAGES (INCLUDING, BUT NOT LIMITED TO, PROCUREMENT OF SUBSTITUTE GOODS OR SERVICES; LOSS OF USE, DATA, OR PROFITS; OR BUSINESS INTERRUPTION) HOWEVER CAUSED AND ON ANY THEORY OF LIABILITY, WHETHER IN CONTRACT, STRICT LIABILITY, OR TORT (INCLUDING NEGLIGENCE OR OTHERWISE) ARISING IN ANY WAY OUT OF THE USE OF THIS SOFTWARE, EVEN IF ADVISED OF THE POSSIBILITY OF SUCH DAMAGE.

Definition at line 47 of file pru.c.

Referenced by pru_wait_event_timeout().
