#include <ctype.h>
#include <errno.h>
#include <stdarg.h>
#include <stdint.h>
#include <stdio.h>
#include <stdlib.h>
#include <string.h>
#include <unistd.h>
#include <pthread.h>
#include <signal.h>
#include <sys/mman.h>
#include <sys/shm.h>
#include <fcntl.h>
#include <poll.h>
#include <sys/stat.h>
#include <sys/time.h>
#include <time.h>
#include <pruss_intc_mapping.h>
#include <prussdrv.h>
#include <ncurses.h>

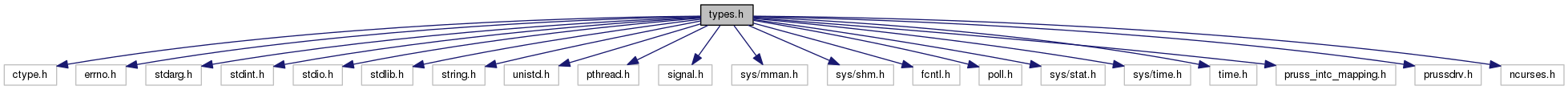

Include dependency graph for types.h:

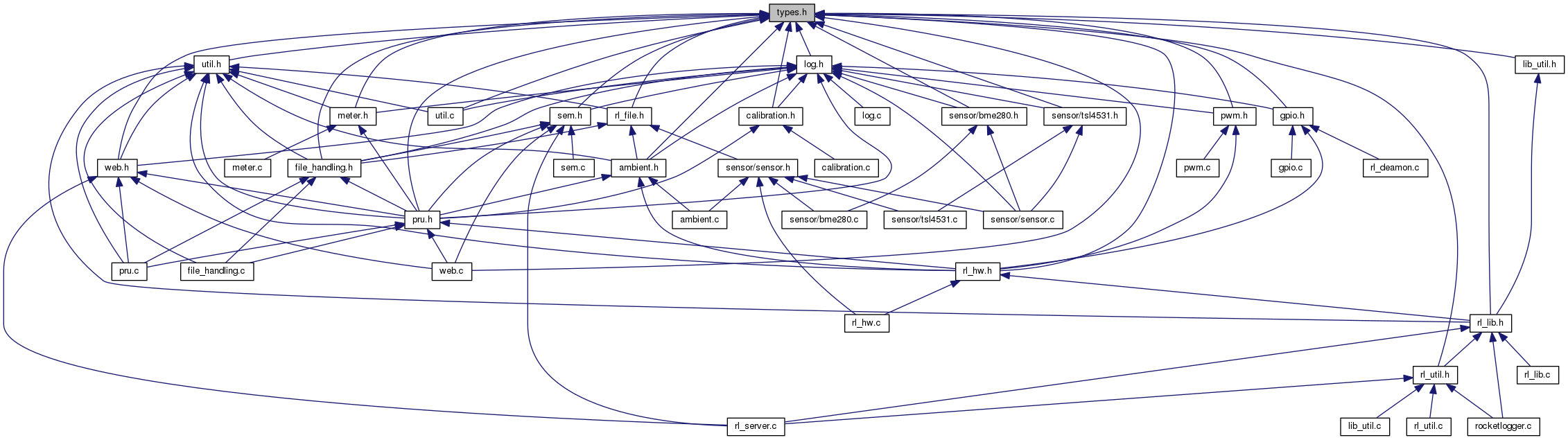

This graph shows which files directly or indirectly include this file:

Go to the source code of this file.

Data Structures
struct	rl_ambient

struct	rl_conf

struct	rl_status

struct	rl_calibration

Macros
#define	SUCCESS 1

#define	UNDEFINED 0

#define	TIME_OUT 0

#define	FAILURE -1

#define	PID_FILE "/var/run/rocketlogger.pid"
	Process ID file for background process. More...

#define	LOG_FILE "/var/www/log/log.txt"
	Log file name. More...

#define	MAC_ADDRESS_FILE "/sys/class/net/eth0/address"
	File to read MAC address. More...

#define	CALIBRATION_FILE "/etc/rocketlogger/calibration.dat"
	Calibration file name. More...

#define	MAX_LOG_FILE_SIZE 1000000
	Log file size in bytes. More...

#define	SHMEM_STATUS_KEY 1111
	Key for status shared memory (used for creation) More...

#define	SHMEM_DATA_KEY 4443
	Key for web shared memory (used for creation) More...

#define	SHMEM_PERMISSIONS 0666
	Permissions for shared memory. More...

#define	MAX_PATH_LENGTH 256
	Maximum path length in characters. More...

#define	NUM_CHANNELS 8
	Maximum number of RocketLogger channels. More...

#define	NUM_I_CHANNELS 2
	Maximum number of RocketLogger current channels. More...

#define	NUM_V_CHANNELS 4
	Maximum number of RocketLogger voltage channels. More...

#define	NUM_DIGITAL_INPUTS 6
	Number of RocketLogger digital channels. More...

#define	METER_UPDATE_RATE 5
	Data update rate in METER mode. More...

#define	PRU_DIG_SIZE 2
	Size of PRU digital information in bytes. More...

#define	PRU_BUFFER_STATUS_SIZE 4
	Size of PRU buffer status in bytes. More...

#define	KSPS 1000
	KSPS <-> SPS conversion factor. More...

#define	I1L_VALID_BIT 1

#define	I2L_VALID_BIT 1

#define	DIGIN1_BIT 2

#define	DIGIN2_BIT 4

#define	DIGIN3_BIT 8

#define	DIGIN4_BIT 2

#define	DIGIN5_BIT 4

#define	DIGIN6_BIT 8

#define	MIN_ADC_RATE 1000
	Minimal ADC sampling rate. More...

#define	RL_CONF_VERSION 0x01
	RocketLogger configuration structure version number. More...

#define	AMBIENT_MAX_SENSOR_COUNT 128

#define	AMBIENT_DISABLED 0

#define	AMBIENT_ENABLED 1

#define	CHANNEL_DISABLED 0
	Channel sampling disabled. More...

#define	CHANNEL_ENABLED 1
	Channel sampling enabled. More...

#define	I1H_INDEX 0

#define	I1L_INDEX 1

#define	V1_INDEX 2

#define	V2_INDEX 3

#define	I2H_INDEX 4

#define	I2L_INDEX 5

#define	V3_INDEX 6

#define	V4_INDEX 7

#define	DIGITAL_INPUTS_DISABLED 0
	Digital input sampling disabled. More...

#define	DIGITAL_INPUTS_ENABLED 1
	Digital input sampling ensabled. More...

#define	SEM_KEY 2222
	Semaphore key (used for set creation) More...

#define	NUM_SEMS 2
	Number of semaphores in set. More...

#define	SEM_TIME_OUT 3
	Time out time in seconds, waiting on semaphore read. More...

#define	SEM_WRITE_TIME_OUT 1
	Time out time in seconds, waiting on semaphore write. More...

#define	SEM_SET_TIME_OUT 1
	Time out time in seconds, waiting on semaphore value set. More...

#define	DATA_SEM 0
	Number of data semaphore in set (manages access to shared memory data) More...

#define	WAIT_SEM 1

#define	NO_FLAG 0
	No flag. More...

Typedefs
typedef enum state	rl_state

typedef enum sampling	rl_sampling

typedef enum mode	rl_mode

typedef enum aggregation	rl_aggregation

typedef enum file_format	rl_file_format

typedef enum use_cal	rl_use_cal

typedef enum log_type	rl_log_type

Enumerations
enum	state { RL_OFF = 0, RL_RUNNING = 1, RL_ERROR = -1 }

enum	sampling { SAMPLING_OFF = 0, SAMPLING_ON = 1 }

enum	mode { LIMIT, CONTINUOUS, METER, STATUS, STOPPED, SET_DEFAULT, PRINT_DEFAULT, PRINT_VERSION, HELP, NO_MODE }

enum	aggregation { AGGREGATE_NONE = 0, AGGREGATE_DOWNSAMPLE = 1, AGGREGATE_AVERAGE = 2 }

enum	file_format { NO_FILE = 0, CSV = 1, BIN = 2 }

enum	use_cal { CAL_IGNORE = 0, CAL_USE = 1 }

enum	log_type { ERROR, WARNING, INFO }

Variables
struct rl_ambient	ambient

struct rl_status	status
	RocketLogger status. More...

struct rl_calibration	calibration
	Calibration data. More...

const char *	channel_names [NUM_CHANNELS]
	Channel names. More...

const char *	digital_input_names [NUM_DIGITAL_INPUTS]
	Digital input names. More...

const char *	valid_info_names [NUM_I_CHANNELS]
	Range valid information names. More...

Macro Definition Documentation

#define AMBIENT_DISABLED 0

Definition at line 210 of file types.h.

Referenced by parse_args(), reset_config(), and rl_start().

#define AMBIENT_ENABLED 1

Definition at line 211 of file types.h.

Referenced by hw_close(), hw_init(), hw_sample(), parse_args(), pru_sample(), and rl_start().

#define AMBIENT_MAX_SENSOR_COUNT 128

Definition at line 209 of file types.h.

#define CALIBRATION_FILE "/etc/rocketlogger/calibration.dat"

Calibration file name.

Definition at line 88 of file types.h.

Referenced by read_calibration().

#define CHANNEL_DISABLED 0

Channel sampling disabled.

Definition at line 221 of file types.h.

Referenced by hw_init().

#define CHANNEL_ENABLED 1

Channel sampling enabled.

Definition at line 223 of file types.h.

Referenced by count_channels(), file_handle_data(), file_setup_channels(), file_setup_lead_in(), meter_print_buffer(), parse_args(), parse_channels(), pru_sample(), reset_config(), rl_print_config(), web_handle_data(), and web_merge_currents().

#define DATA_SEM 0

Number of data semaphore in set (manages access to shared memory data)

Definition at line 323 of file types.h.

Referenced by main(), print_data(), pru_sample(), and web_handle_data().

#define DIGIN1_BIT 2

Definition at line 126 of file types.h.

#define DIGIN2_BIT 4

Definition at line 127 of file types.h.

#define DIGIN3_BIT 8

Definition at line 128 of file types.h.

#define DIGIN4_BIT 2

Definition at line 129 of file types.h.

#define DIGIN5_BIT 4

Definition at line 130 of file types.h.

#define DIGIN6_BIT 8

Definition at line 131 of file types.h.

#define DIGITAL_INPUTS_DISABLED 0

Digital input sampling disabled.

Definition at line 240 of file types.h.

Referenced by parse_args().

#define DIGITAL_INPUTS_ENABLED 1

Digital input sampling ensabled.

Definition at line 242 of file types.h.

Referenced by file_handle_data(), file_setup_channels(), file_setup_lead_in(), parse_args(), pru_sample(), reset_config(), and web_handle_data().

#define FAILURE -1

#define I1H_INDEX 0

Channel indices in channel array

Definition at line 229 of file types.h.

Referenced by is_current(), pru_sample(), and web_merge_currents().

#define I1L_INDEX 1

Definition at line 230 of file types.h.

Referenced by file_handle_data(), file_setup_channels(), file_setup_lead_in(), is_current(), is_low_current(), pru_sample(), web_handle_data(), and web_merge_currents().

#define I1L_VALID_BIT 1

Digital channel bit position in PRU digital information

Definition at line 124 of file types.h.

Referenced by meter_print_buffer().

#define I2H_INDEX 4

Definition at line 233 of file types.h.

Referenced by is_current(), pru_sample(), and web_merge_currents().

#define I2L_INDEX 5

Definition at line 234 of file types.h.

Referenced by file_handle_data(), file_setup_channels(), file_setup_lead_in(), is_current(), is_low_current(), pru_sample(), web_handle_data(), and web_merge_currents().

#define I2L_VALID_BIT 1

Definition at line 125 of file types.h.

Referenced by meter_print_buffer().

#define KSPS 1000

KSPS <-> SPS conversion factor.

Definition at line 119 of file types.h.

Referenced by parse_args(), and rl_print_config().

#define LOG_FILE "/var/www/log/log.txt"

Log file name.

Definition at line 84 of file types.h.

Referenced by rl_log().

#define MAC_ADDRESS_FILE "/sys/class/net/eth0/address"

File to read MAC address.

Definition at line 86 of file types.h.

Referenced by get_mac_addr().

#define MAX_LOG_FILE_SIZE 1000000

Log file size in bytes.

Definition at line 91 of file types.h.

Referenced by rl_log().

#define MAX_PATH_LENGTH 256

Maximum path length in characters.

Definition at line 102 of file types.h.

Referenced by ambient_set_file_name(), gpio_dir(), gpio_get_value(), gpio_interrupt(), gpio_set_value(), gpio_wait_interrupt(), parse_args(), print_status(), and pru_sample().

#define METER_UPDATE_RATE 5

Data update rate in METER mode.

Definition at line 112 of file types.h.

Referenced by rl_start().

#define MIN_ADC_RATE 1000

Minimal ADC sampling rate.

Definition at line 134 of file types.h.

Referenced by file_handle_data(), hw_init(), pru_sample(), and rl_start().

#define NO_FLAG 0

No flag.

Definition at line 329 of file types.h.

Referenced by set_sem(), and wait_sem().

#define NUM_CHANNELS 8

Maximum number of RocketLogger channels.

Definition at line 104 of file types.h.

Referenced by count_channels(), file_handle_data(), file_setup_channels(), meter_print_buffer(), parse_channels(), print_status(), pru_data_setup(), pru_sample(), reset_config(), reset_offsets(), reset_scales(), rl_print_config(), and web_handle_data().

#define NUM_DIGITAL_INPUTS 6

Number of RocketLogger digital channels.

Definition at line 110 of file types.h.

Referenced by file_handle_data(), file_setup_channels(), file_setup_lead_in(), pru_sample(), and web_handle_data().

#define NUM_I_CHANNELS 2

Maximum number of RocketLogger current channels.

Definition at line 106 of file types.h.

Referenced by print_status(), rl_print_config(), and web_handle_data().

#define NUM_SEMS 2

Number of semaphores in set.

Definition at line 314 of file types.h.

Referenced by main(), and pru_sample().

#define NUM_V_CHANNELS 4

Maximum number of RocketLogger voltage channels.

Definition at line 108 of file types.h.

#define PID_FILE "/var/run/rocketlogger.pid"

Process ID file for background process.

Definition at line 82 of file types.h.

Referenced by get_pid(), and set_pid().

#define PRU_BUFFER_STATUS_SIZE 4

Size of PRU buffer status in bytes.

Definition at line 116 of file types.h.

Referenced by pru_data_setup(), and pru_sample().

#define PRU_DIG_SIZE 2

Size of PRU digital information in bytes.

Definition at line 114 of file types.h.

Referenced by file_handle_data(), meter_print_buffer(), pru_data_setup(), pru_sample(), and web_handle_data().

#define RL_CONF_VERSION 0x01

RocketLogger configuration structure version number.

Definition at line 206 of file types.h.

Referenced by read_default_config(), and reset_config().

#define SEM_KEY 2222

Semaphore key (used for set creation)

Definition at line 312 of file types.h.

Referenced by main(), and pru_sample().

#define SEM_SET_TIME_OUT 1

Time out time in seconds, waiting on semaphore value set.

Definition at line 320 of file types.h.

Referenced by set_sem().

#define SEM_TIME_OUT 3

Time out time in seconds, waiting on semaphore read.

Definition at line 316 of file types.h.

Referenced by main(), and print_data().

#define SEM_WRITE_TIME_OUT 1

Time out time in seconds, waiting on semaphore write.

Definition at line 318 of file types.h.

Referenced by web_handle_data().

#define SHMEM_DATA_KEY 4443

Key for web shared memory (used for creation)

Definition at line 96 of file types.h.

Referenced by web_create_shm(), and web_open_shm().

#define SHMEM_PERMISSIONS 0666

Permissions for shared memory.

Definition at line 98 of file types.h.

Referenced by read_status(), web_create_shm(), web_open_shm(), and write_status().

#define SHMEM_STATUS_KEY 1111

Key for status shared memory (used for creation)

Definition at line 94 of file types.h.

Referenced by read_status(), and write_status().

#define SUCCESS 1

Redistribution and use in source and binary forms, with or without modification, are permitted provided that the following conditions are met:

Redistributions of source code must retain the above copyright notice, this list of conditions and the following disclaimer.
Redistributions in binary form must reproduce the above copyright notice, this list of conditions and the following disclaimer in the documentation and/or other materials provided with the distribution.
Neither the name of the copyright holder nor the names of its contributors may be used to endorse or promote products derived from this software without specific prior written permission.

THIS SOFTWARE IS PROVIDED BY THE COPYRIGHT HOLDERS AND CONTRIBUTORS "AS IS" AND ANY EXPRESS OR IMPLIED WARRANTIES, INCLUDING, BUT NOT LIMITED TO, THE IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE ARE DISCLAIMED. IN NO EVENT SHALL THE COPYRIGHT HOLDER OR CONTRIBUTORS BE LIABLE FOR ANY DIRECT, INDIRECT, INCIDENTAL, SPECIAL, EXEMPLARY, OR CONSEQUENTIAL DAMAGES (INCLUDING, BUT NOT LIMITED TO, PROCUREMENT OF SUBSTITUTE GOODS OR SERVICES; LOSS OF USE, DATA, OR PROFITS; OR BUSINESS INTERRUPTION) HOWEVER CAUSED AND ON ANY THEORY OF LIABILITY, WHETHER IN CONTRACT, STRICT LIABILITY, OR TORT (INCLUDING NEGLIGENCE OR OTHERWISE) ARISING IN ANY WAY OUT OF THE USE OF THIS SOFTWARE, EVEN IF ADVISED OF THE POSSIBILITY OF SUCH DAMAGE. Return code definitions

Definition at line 75 of file types.h.

Referenced by BME280_init(), BME280_read(), BME280_readCalibration(), BME280_setParameters(), check_sample_rate(), check_update_rate(), gpio_dir(), gpio_export(), gpio_interrupt(), gpio_set_value(), gpio_setup(), gpio_unexport(), hw_sample(), main(), parse_args(), parse_channels(), print_data(), pru_data_setup(), pru_init(), pru_sample(), pru_unmap_memory(), pwm_setup(), read_calibration(), read_default_config(), read_status(), remove_sem(), rl_start(), rl_stop(), Sensors_scan(), set_pid(), set_sem(), TSL4531_init(), TSL4531_read(), TSL4531_sendRange(), TSL4531_setParameters(), TSL4531_setRange(), wait_sem(), write_default_config(), and write_status().

#define TIME_OUT 0

Definition at line 77 of file types.h.

Referenced by set_sem(), wait_sem(), and web_handle_data().

#define UNDEFINED 0

Definition at line 76 of file types.h.

Referenced by read_default_config().

#define V1_INDEX 2

Definition at line 231 of file types.h.

Referenced by web_merge_currents().

#define V2_INDEX 3

Definition at line 232 of file types.h.

Referenced by web_merge_currents().

#define V3_INDEX 6

Definition at line 235 of file types.h.

Referenced by web_merge_currents().

#define V4_INDEX 7

Definition at line 236 of file types.h.

Referenced by web_merge_currents().

#define WAIT_SEM 1

Number of wait semaphore in set (blocks all server processes, until new data is available)

Definition at line 326 of file types.h.

Referenced by main(), and pru_sample().

Typedef Documentation

typedef enum aggregation rl_aggregation

RocketLogger data aggregation mode definition

typedef enum file_format rl_file_format

RocketLogger file format definition

typedef enum log_type rl_log_type

RocketLogger log file types definition

typedef enum mode rl_mode

RocketLogger mode definition

typedef enum sampling rl_sampling

RocketLogger sampling state definition

typedef enum state rl_state

RocketLogger state definition

typedef enum use_cal rl_use_cal

RocketLogger calibration definition

Enumeration Type Documentation

enum aggregation

RocketLogger data aggregation mode definition

Enumerator
AGGREGATE_NONE	No aggregation.
AGGREGATE_DOWNSAMPLE	Aggregate using downsampling.
AGGREGATE_AVERAGE	Aggregate by averaging data.

Definition at line 173 of file types.h.

enum file_format

RocketLogger file format definition

Enumerator
NO_FILE	No file.
CSV	CSV format.
BIN	Binary format.

Definition at line 182 of file types.h.

enum log_type

RocketLogger log file types definition

Enumerator
ERROR	Error.
WARNING	Warning.
INFO	Information.

Definition at line 199 of file types.h.

enum mode

RocketLogger mode definition

Enumerator
LIMIT	Limited sampling mode (limited by number of samples to take)
CONTINUOUS	Continuous sampling mode (in background)
METER	Meter mode (display current values in terminal)
STATUS	Get current status of RocketLogger.
STOPPED	Stop continuous sampling.
SET_DEFAULT	Set default configuration.
PRINT_DEFAULT	Print default configuration.
PRINT_VERSION	Print the RocketLogger Software Stack version.
HELP	Show help.
NO_MODE	No mode.

Definition at line 157 of file types.h.

enum sampling

RocketLogger sampling state definition

Enumerator
SAMPLING_OFF	Not sampling.
SAMPLING_ON	Sampling.

Definition at line 149 of file types.h.

enum state

RocketLogger state definition

Enumerator
RL_OFF	Idle.
RL_RUNNING	Running.
RL_ERROR	Error.

Definition at line 140 of file types.h.

enum use_cal

RocketLogger calibration definition

Enumerator
CAL_IGNORE	Ignore calibration.
CAL_USE	Use calibration (if existing)

Definition at line 191 of file types.h.

Variable Documentation

struct rl_ambient ambient

struct rl_calibration calibration

Calibration data.

Definition at line 335 of file types.h.

Referenced by file_handle_data(), meter_print_buffer(), read_calibration(), reset_offsets(), reset_scales(), rl_read_calibration(), and web_handle_data().

const char* channel_names[NUM_CHANNELS]

Channel names.

Redistribution and use in source and binary forms, with or without modification, are permitted provided that the following conditions are met:

Redistributions of source code must retain the above copyright notice, this list of conditions and the following disclaimer.
Redistributions in binary form must reproduce the above copyright notice, this list of conditions and the following disclaimer in the documentation and/or other materials provided with the distribution.
Neither the name of the copyright holder nor the names of its contributors may be used to endorse or promote products derived from this software without specific prior written permission.

THIS SOFTWARE IS PROVIDED BY THE COPYRIGHT HOLDERS AND CONTRIBUTORS "AS IS" AND ANY EXPRESS OR IMPLIED WARRANTIES, INCLUDING, BUT NOT LIMITED TO, THE IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE ARE DISCLAIMED. IN NO EVENT SHALL THE COPYRIGHT HOLDER OR CONTRIBUTORS BE LIABLE FOR ANY DIRECT, INDIRECT, INCIDENTAL, SPECIAL, EXEMPLARY, OR CONSEQUENTIAL DAMAGES (INCLUDING, BUT NOT LIMITED TO, PROCUREMENT OF SUBSTITUTE GOODS OR SERVICES; LOSS OF USE, DATA, OR PROFITS; OR BUSINESS INTERRUPTION) HOWEVER CAUSED AND ON ANY THEORY OF LIABILITY, WHETHER IN CONTRACT, STRICT LIABILITY, OR TORT (INCLUDING NEGLIGENCE OR OTHERWISE) ARISING IN ANY WAY OUT OF THE USE OF THIS SOFTWARE, EVEN IF ADVISED OF THE POSSIBILITY OF SUCH DAMAGE.

Definition at line 42 of file file_handling.c.

Referenced by file_setup_channels(), and meter_print_buffer().

const char* digital_input_names[NUM_DIGITAL_INPUTS]

Digital input names.

Definition at line 45 of file file_handling.c.

Referenced by file_setup_channels(), and meter_print_buffer().

struct rl_status status

RocketLogger status.

Definition at line 333 of file types.h.

const char* valid_info_names[NUM_I_CHANNELS]

Range valid information names.

Definition at line 48 of file file_handling.c.

Referenced by file_setup_channels().

Data Structures

Macros

Typedefs

Enumerations

Variables

Macro Definition Documentation

Typedef Documentation

Enumeration Type Documentation

Variable Documentation
