meter.h File Reference

#include <stdint.h>
#include <ncurses.h>
#include "types.h"
#include "log.h"
#include "util.h"

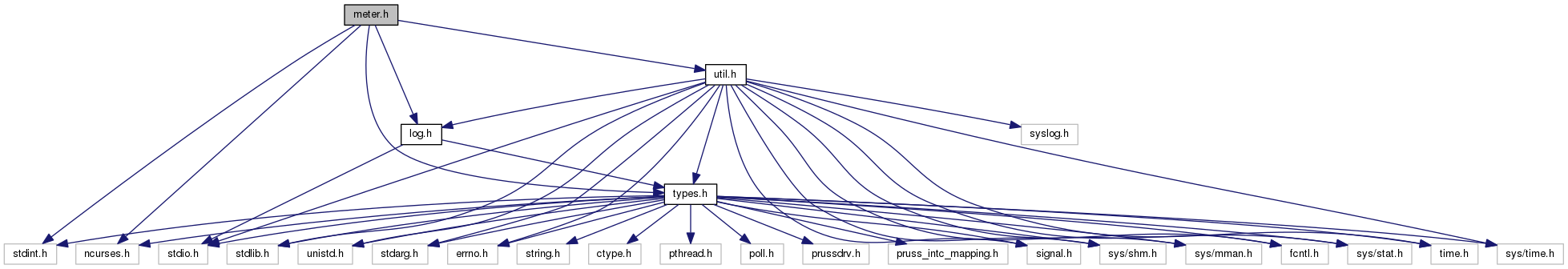

Include dependency graph for meter.h:

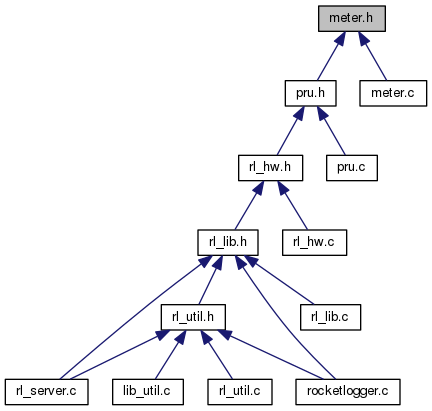

This graph shows which files directly or indirectly include this file:

Go to the source code of this file.

Functions
void	meter_init (void)
void	meter_stop (void)
void	meter_print_buffer (struct rl_conf *conf, void *virt_addr, uint32_t sample_size)

Function Documentation

void meter_init

(

void

)

Copyright (c) 2016-2017, ETH Zurich, Computer Engineering Group

Init meter window

Definition at line 17 of file meter.c.

Referenced by pru_sample().

void meter_print_buffer	(	struct rl_conf *	conf,
		void *	buffer_addr,
		uint32_t	sample_size
	)

Print data buffer in meter window

Parameters

conf	Pointer to current rl_conf configuration
buffer_addr
sample_size	Size of samples in buffer

Definition at line 40 of file meter.c.

References calibration, CHANNEL_ENABLED, channel_names, channel_scales, channel_units, rl_conf::channels, count_channels(), digital_input_bits, digital_input_names, rl_conf::digital_inputs, I1L_VALID_BIT, I2L_VALID_BIT, is_current(), num_channels, NUM_CHANNELS, rl_calibration::offsets, PRU_DIG_SIZE, rl_conf::sample_rate, rl_calibration::scales, and rl_conf::update_rate.

Referenced by pru_sample().

Here is the call graph for this function:

void meter_stop

(

void

)

Stop meter window

Definition at line 30 of file meter.c.

Referenced by pru_sample().
